Save 28%

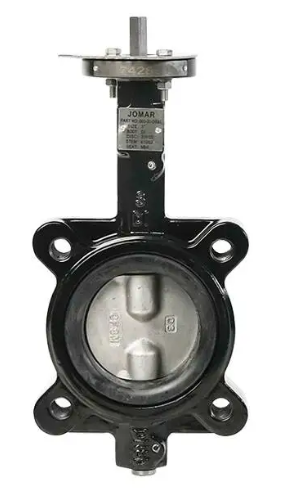

Jomar Valve BFV-Lug EPDM Series, Lug Style, Epoxy-Coated Ductile Iron Body, Stainless Steel Disc, EPDM Seat, Lever Handle/Gear Operator Butterfly Valve
SKU:
JMR-BFV-Lug-EPDM-BV
Starting at
$140.99
Out of Stock
Select a Model to Order This page shows the full series. Choose a specific model below to view pricing and add to cart.
Available Models
2", Lever Handle
2-1/2", Lever Handle
3", Lever Handle
4", Lever Handle
4", Gear Operator
5", Lever Handle
6", Lever Handle
6", Gear Operator
8", Bare Stem
8", Gear Operator
10", Gear Operator
12", Gear Operator
14", Gear Operator
16", Gear Operator
18", Gear Operator
20", Gear Operator
24", Gear Operator
30", Gear Operator
36", Gear Operator
Please select a model to order.
Select a model above to add to cart.
Size2" to 36"
Pressure RatingRefer to spec sheet for inline and dead-end pressure ratings.
Body MaterialDuctile Iron - Epoxy Coated
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Item | Butterfly Valve |
|---|---|
| Size | 2" to 36" |
| Body Type | Lug Style |
| Temp. Range | -30°F to 250°F |
| Brand | Jomar Valve |
| Manufacturer Part # | JMR-BFV-Lug-EPDM-BV |
Materials & Construction
| Body Material | Ductile Iron - Epoxy Coated |
|---|---|
| Seat Material | EPDM |
| Handle Type | Bare Stem/Lever Handle/Gear Operator |
| Disc Material | CF8M Stainless Steel |
Performance
| Pressure Rating | Refer to spec sheet for inline and dead-end pressure ratings. |
|---|
