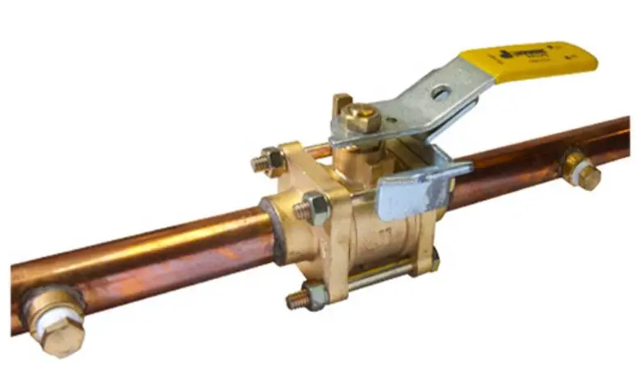

Jomar Valve S-675-DGP-4B Series, 3 Piece, 4 Bolt, Brass, Oxygen Cleaned for Medical Gas, Copper Stub Connection, Double Gauge Port, 600 WOG Ball Valve

Name: Jomar Valve S-675-DGP-4B Series, 3 Piece, 4 Bolt, Brass, Oxygen Cleaned for Medical Gas, Copper Stub Connection, Double Gauge Port, 600 WOG Ball Valve
Brand: Jomar Valve
SKU: JMR-S-675-DGP-4B

SKU: JMR-S-675-DGP-4B

Starting at $278.99

Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.

Available Sizes

1/2" 3/4" 1" 1-1/4" 1-1/2" 2"

Size1/2" to 2"

Max Pressure600 psi WOG, 150 psi steam

Body MaterialBrass

End ConnectionCopper Stub

PortDouble Gauge Port

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	Medical Gas Ball Valve
Size	1/2" to 2"
Design Type	3-Piece
Brand	Jomar Valve
Manufacturer Part #	JMR-S-675-DGP-4B

Materials & Construction

Body Material	Brass
Ball Material	304 Stainless Steel
Handle Type	Latch Lock Handle
Seat Material	RPTFE
Stem Material	(1/2" to 3/4") Brass,(1" to 2") 304 Stainless Steel

Performance

Max Pressure	600 psi WOG, 150 psi steam

Connections

Port	Double Gauge Port
End Connection	Copper Stub

Download Specification Sheet (PDF)
