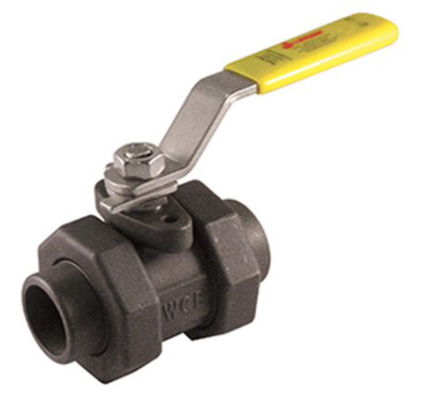

Jomar Valve S-CS-2002N-SS-DUE Series, 5 Piece, Double Union End, Full Port, Carbon Steel, Socket Weld, Stainless Steel Ball & Stem, 3000 WOG Ball Valve
SKU:
JMR-S-CS-2002N-SS-DUE
Starting at
$119.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Size3/8" to 2"
Max Pressure3000 psi WOG, 150 psi steam
Body MaterialWCB Carbon Steel
End ConnectionDouble Union with Socket Weld Ends
PortFull Port
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Item | Ball Valve |
|---|---|
| Size | 3/8" to 2" |
| Design Type | 5-Piece |
| Brand | Jomar Valve |
| Manufacturer Part # | JMR-S-CS-2002N-SS-DUE |
Materials & Construction
| Body Material | WCB Carbon Steel |
|---|---|
| Ball Material | CF8M Stainless Steel |
| Handle Type | Reversible Handle |
| Seat Material | Hostaflon TFM 1600 |
| Stem Material | 316 Stainless Steel |
| Stem Design | Adjustable Stem Packing with Blowout Proof Stem |
Performance
| Max Pressure | 3000 psi WOG, 150 psi steam |
|---|
Connections
| Port | Full Port |
|---|---|
| End Connection | Double Union with Socket Weld Ends |
