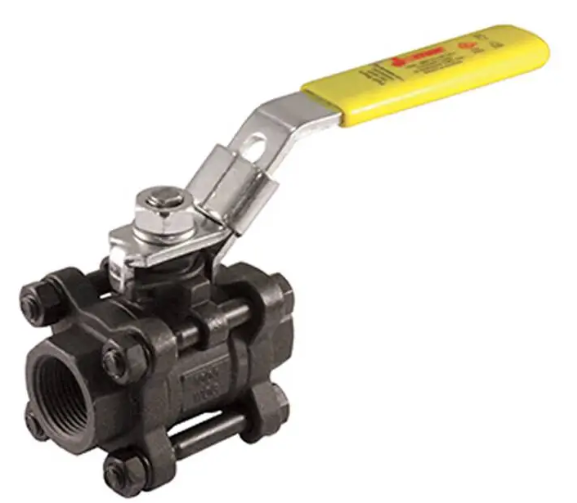

Jomar Valve T-CS-1000N-SS-4B Series, 3 Piece, 4 Bolt, Full Port, Carbon Steel, Swing Out Body, NPT Threaded, Stainless Steel Ball & Stem, 1000 WOG Ball Valve

Name: Jomar Valve T-CS-1000N-SS-4B Series, 3 Piece, 4 Bolt, Full Port, Carbon Steel, Swing Out Body, NPT Threaded, Stainless Steel Ball & Stem, 1000 WOG Ball Valve
Brand: Jomar Valve
SKU: JMR-T-CS-1000N-SS-4B

SKU: JMR-T-CS-1000N-SS-4B

Starting at $52.99

Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.

Available Sizes

1/2" 3/4" 1" 1-1/4" 1-1/2" 2"

Size1/2" to 2"

Max Pressure1000 psi WOG, 150 psi steam

Body MaterialWCB Carbon Steel

End ConnectionNPT Threaded

PortFull Port

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	Ball Valve
Size	1/2" to 2"
Design Type	3-Piece, 4 Bolt Swing out Body
Brand	Jomar Valve
Manufacturer Part #	JMR-T-CS-1000N-SS-4B

Materials & Construction

Body Material	WCB Carbon Steel
Ball Material	CF8M Stainless Steel
Handle Type	Latch Lock Handle
Seat Material	Hostaflon TFM
Stem Material	316 Stainless Steel

Performance

Max Pressure	1000 psi WOG, 150 psi steam

Connections

Port	Full Port
End Connection	NPT Threaded

Download Specification Sheet (PDF)
