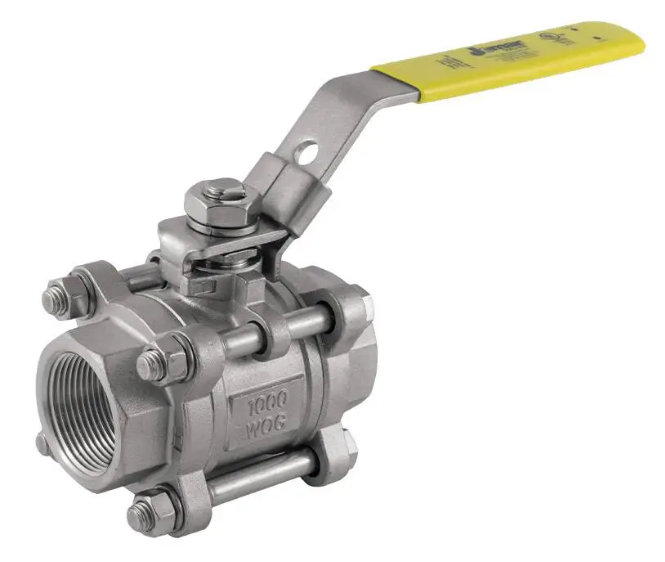

Jomar Valve T-SS-1000N-4B Series, 3 Piece, 4 Bolt, Full Port, Stainless Steel, Swing Out Body, Threaded/Socket Weld/Square Flange Connection, Stainless Steel Ball & Stem, Drain Tap, 1000 WOG Ball Valve
SKU:
Jomar Valve T-SS-1000N-4B Series Ball Valve
Starting at
$447.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Size1/4" to 4"
Max Pressure1000 psi WOG, 150 psi steam
Body MaterialCF8M Stainless Steel
End ConnectionNPT Threaded
PortFull Port
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Item | Ball Valve |
|---|---|
| Size | 1/4" to 4" |
| Design Type | 3-Piece, 4 Bolt Swing out Body |
| Brand | Jomar Valve |
| Manufacturer Part # | Jomar Valve T-SS-1000N-4B Series Ball Valve |
Materials & Construction
| Body Material | CF8M Stainless Steel |
|---|---|
| Ball Material | CF8M Stainless Steel |
| Handle Type | Latch Lock Handle |
| Seat Material | Hostaflon TFM |
| Stem Material | 316 Stainless Steel |
Performance
| Max Pressure | 1000 psi WOG, 150 psi steam |
|---|
Connections
| Port | Full Port |
|---|---|
| End Connection | NPT Threaded |
