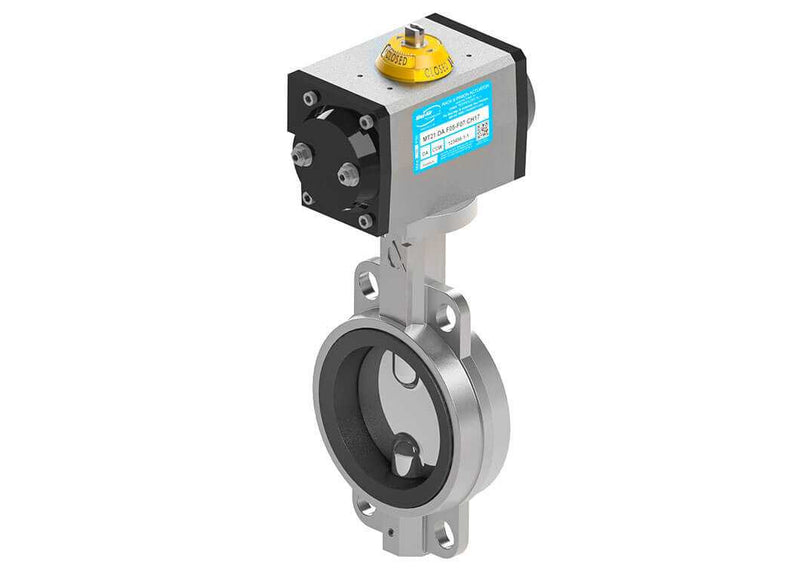

Max-Air 650-479-D82*0-MA - Wafer Style Butterfly Valves, Double Acting Pneumatic, Stainless Steel Body, Polished Stainless Steel Disc, EPDM Seat

Name: Max-Air 650-479-D82*0-MA - Wafer Style Butterfly Valves, Double Acting Pneumatic, Stainless Steel Body, Polished Stainless Steel Disc, EPDM Seat
Brand: Max-Air
SKU: 650-479-D82*0-MA

SKU: 650-479-D82*0-MA

Starting at $393.99

Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.

Available Sizes

2" 2-1/2" 3" 4" 5" 6" 8" 10" 12" 14" 16" 18" 20" 24"

Pressure Rating200 PSI / 150 PSI

Body MaterialStainless Steel

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	Butterfly Valves
Operation	Double Acting Pneumatic
Brand	Max-Air
Manufacturer Part #	650-479-D82*0-MA

Materials & Construction

Body Style	Wafer
Body Material	Stainless Steel
Disc Material	Polished Stainless Steel
Seat Material	EPDM

Performance

Pressure Rating	200 PSI / 150 PSI
Temp. Rating	-40°F to +275°F
Pressure Class	Class 150

Standards & Certifications

NSF61 Commercial Hot

Download CAD Drawing (PDF)
