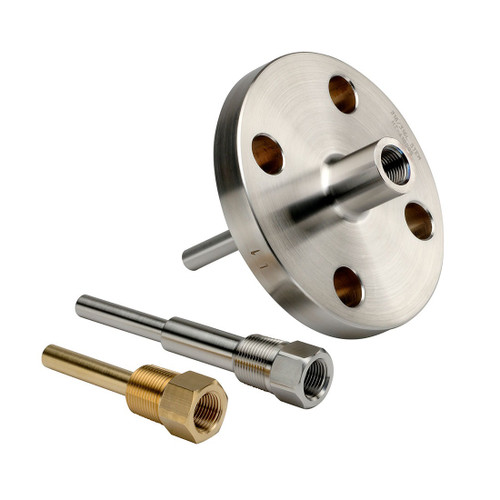

6" NOSHOK 50/75/100 Series Temperature Thermowells, 100-060-304-SS, 1" NPT Stepped Shank, 1/2" NPSM Instrument Connection, 304 Stainless Steel Thermowell

50/75/100 Series - Thermowells

• Allows a temperature instrument to be removed and replaced without shutting down and draining the process
• Reduces the possibility of damage to the temperature instrument
• Provides protection to the operator
• 1/2" NPSM instrument connection, 3/4" NPT process connection standard - 1/2" NPT, 1" NPT, flanged and sanitary options available
• 150 Class and 300 Class raised face flanged thermowells available

Application

• Recommended wherever the process being measured is under pressure, corrosive, abrasive, or moving at a high velocity
• HVAC
• Petrochemical
• Oil and gas
• Process (flanged thermowells)

Prop 65 Warnings

• WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Limitations Which Apply Are

• These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.

  In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.

Additional Information

• The Female thread will accept the 1/2" NPT Male thread without galling or seizing
• Brass, 304 Stainless Steel, or 316 Stainless Steel standard material options - other options available
• Standard style is stepped, available in straight, tapered and lagging options
• Multiple lagging lengths available

Note

• To order a Flange Connection, you must specify Option RF1 or RF2. Flange Connections available only in Stainless steel.

Technical Specification Sheet Here
