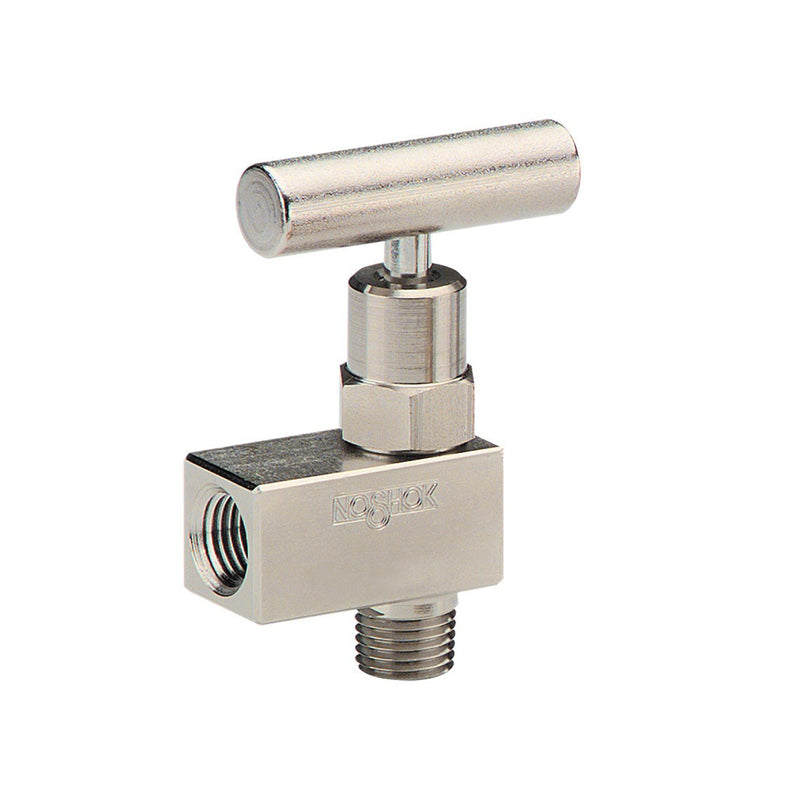

NOSHOK 100 Series Mini Needle Valves, NSH-100-MINI-STEEL, 8,000 to 10,000 psi, NPT, Steel, 0.172" Orifice Hard Seat
SKU:
NSH-100-MINI-STEEL
Made in the United States
$36.99
Price on request
Out of Stock
Connection Size1/8 in
Pressure Ratings at 200 Degree Fahrenheit (ºF) Temperature10,000 psi
Connection TypeNPT
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Needle Valve |
|---|---|
| Series | 100 |
| Valve Type | Female-Female Angle |
| Orifice Size | 0.172 in |
| Cv Coefficient | 0.42 |
| Warranty | 3 yr |
| Brand | NOSHOK |
| Manufacturer Part # | NSH-100-MINI-STEEL |
| Size | 1/4" |
| Country of Origin | Made in the United States |
Materials & Construction
| Valve Material | Steel |
|---|---|
| Material | Zinc-Nickel Plated Steel |
| Stem Seal and Type | All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optional |
| Seat | Hard Seat |
Performance
| Pressure Ratings at 200 Degree Fahrenheit (ºF) Temperature | 10,000 psi |
|---|
Connections
| Connection Size | 1/8 in |
|---|---|
| Connection Type | NPT |
Dimensions & Weight
| Weight | 0.5 lb |
|---|---|
| Unit Net Weight | 0.5 lb |
Overview
100 Series - Mini Needle Valves With Hard Seat
- Compact size valve built for maximum durability and robust performance in the toughest applications
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
- FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optional
