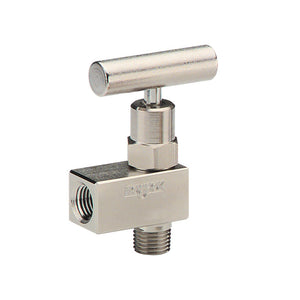

NOSHOK 102-MFS - 1/4" NPT, Male-Female, Stainless Steel, Hard Seat, Mini Needle Valve
Brand : NOSHOK
MSRP: $108.93
Starting At:
$62.99
(You save
$45.94
)
- Size:
- 1/4"
- Size Dropdown:
- True
Country of Origin: Made in the United States
NOSHOK Mini Needle Valve, 100 Series - Tech Specs
Materials
Zinc-nickel plated steel, electropolished 316 stainless steel, 360 brass
Connections
1/8" NPT, 1/4" NPT, 7/16"-20 UNF-2B, 9/16"-18 UNF-2B Male-male, Male-female, Female-female, in-line and angled configurations
Pressure ratings*
Brass: 6,000 psi @ 200 °F, Steel: 10,000 psi @ 200 °F
Body Material
Zinc-nickel plated steel, electropolished 316 stainless steel, 360 brass
Body Material
Zinc-nickel plated steel, electropolished 316 stainless steel, 360 brass
Orifice size
0.172"
Flow coefficient
CV 0.42
Stem seal & type
All 316 stainless steel stems with FKM o-ring and PTFE back-up ring below the threads, PTFE or Grafoil® packing optional
Options
Panel mountings, o-ring materials, handles, packings, regulating stem and stem tips
Weight
Approximately 0.5 lb.
Flow coefficient
CV 0.42
Stem seal & type
All 316 stainless steel stems with FKM o-ring and PTFE back-up ring below the threads, PTFE or Grafoil® packing optional
Options
Panel mountings, o-ring materials, handles, packings, regulating stem and stem tips
Weight
Approximately 0.5 lb.
Three Year Warranty (applies to all needle and manifold valves)
