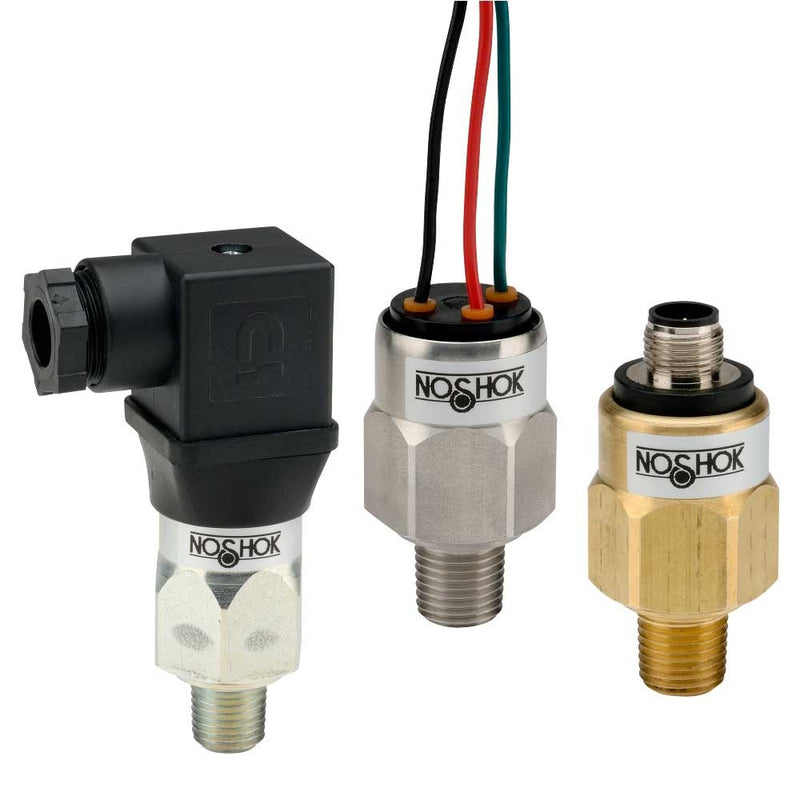

NOSHOK 200 Series Mechanical Compact Single Pole Double Throw (SPDT) Pressure Switches, Snap Action, NBR Diaphragm, 1 SPDT, (NO/NC), -5 to 6,000 psig, Weatherpack Shroud, 3-Pin Male

NOSHOK Authorized Distributor

NOSHOK 200 Series Mechanical Compact Single Pole Double Throw (SPDT) Pressure Switches, Snap Action, NBR Diaphragm, 1 SPDT, (NO/NC), -5 to 6,000 psig, Weatherpack Shroud, 3-Pin Male

Name: NOSHOK 200 Series Mechanical Compact Single Pole Double Throw (SPDT) Pressure Switches, Snap Action, NBR Diaphragm, 1 SPDT, (NO/NC), -5 to 6,000 psig, Weatherpack Shroud, 3-Pin Male
Brand: NOSHOK
SKU: NSK-200-SPDT-5/6000-psig-WS-3-Pin-M

SKU: NSK-200-SPDT-5/6000-psig-WS-3-Pin-M

Made in the United States

Starting at $77.99

Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.

Available Sizes

1/8" 1/8" 1/8" 1/8" 1/8" 1/8" 1/4" 1/4" 1/4" 1/4" 1/4" 1/4" 7/16" 7/16" 7/16"

Process Connection Size1/8 in

Static Proof Pressure9,000 psi, 620 bar

Electrical ConnectionWeatherpack Shroud, 3-Pin Male, Attached to Flying Leads

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Type	Mechanical Pressure Switch
Series	200
Switching Function	Single Pole Double Throw (SPDT)
Switch Adjustable Range	-5 to -25 inHg
Switch Type	Snap Action
Switch Point	Field Adjustable and/or Factory Set
Hysteresis	4 to 6 inHg
Service Life	< 1,000,000 Load Cycles
Measuring Element	Brass, NBR Diaphragm
Warranty	1 yr
Brand	NOSHOK
Manufacturer Part #	NSK-200-SPDT-5/6000-psig-WS-3-Pin-M
Country of Origin	Made in the United States

Materials & Construction

Housing Material	Zinc-Nickel Plated Steel

Performance

Environmental Rating	Ingress Protection (IP69)
Static Proof Pressure	9,000 psi, 620 bar
Dynamic Proof Pressure	7,500 psi, 517 bar
Contact Rating	5A @ 12/24 Vdc

Connections

Electrical Connection	Weatherpack Shroud, 3-Pin Male, Attached to Flying Leads
Process Connection	National Pipe Thread (NPT) Male
Process Connection Size	1/8 in

Dimensions & Weight

Weight	0.2 lb

Download Specification Sheet (PDF)

Overview

200 Series - Mechanical Compact Single Pole Double Throw (SPDT) Pressure Switches

Switch adjustment ranges from vacuum through 6,00 psig depending on model
200V & 200L: Standard Brass with NBR diaphragm wetted parts, 200H: Standard Zinc-nickel with NBR diaphragm wetted parts
SPST or SPDT snap-action switch with solid Silver contacts
RoHS compliant
