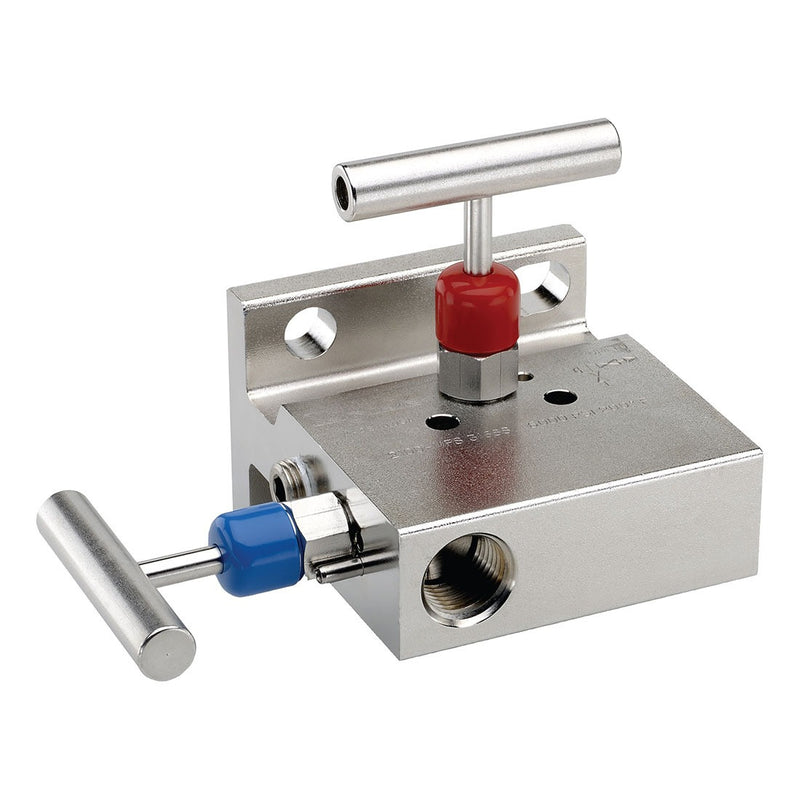

NOSHOK 2000/2100 Series Static Pressure Block & Bleed 2 Manifold Valves With Hard & Soft Seat, 2000-FFC, Hard Seat, 1/2" NPT Female x 1/2" NPT Female, Steel, 0.187" Orifice, 2 Manifold Valve
SKU:
2000-FFC
Made in the United States
$201.99
Price on request
Was: $298.58
You Save $96.59
Available
Connection Size1/2 in
Pressure Rating at 200 Degree Fahrenheit (ºF) Temperature110,000 psi
Connection TypeNational Pipe Thread (NPT) Standard or Flange
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Syndication_SET | 1 |
|---|---|
| Type | Manifold Valve |
| Series | 2-Valve |
| Process Type | Static Pressure |
| Valve Type | Female-Female |
| Orifice Size | 0.187 in |
| Warranty | 3 yr |
| Brand | NOSHOK |
| Manufacturer Part # | 2000-FFC |
| Size | 1/2" |
| Country of Origin | Made in the United States |
Materials & Construction
| Materials | Zinc-nickel plated steel, electropolished 316 Stainless Steel |
|---|---|
| Seat | Hard Seat |
| Valve Material | Steel |
| Stem Seal and Type | All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optional |
Performance
| Pressure Rating at 200 Degree Fahrenheit (ºF) Temperature1 | 10,000 psi |
|---|---|
| Flow Coefficient Cv | 0.44 |
Connections
| Connection Size | 1/2 in |
|---|---|
| Connection Type | National Pipe Thread (NPT) Standard or Flange |
Overview
2000/2100 Series - Static Pressure Block & Bleed 2 Manifold Valves With Hard & Soft Seat
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
- Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation
- Block valve is located on the left side and the bleed valve is located on top in a 90º orientation, venting is to the right
