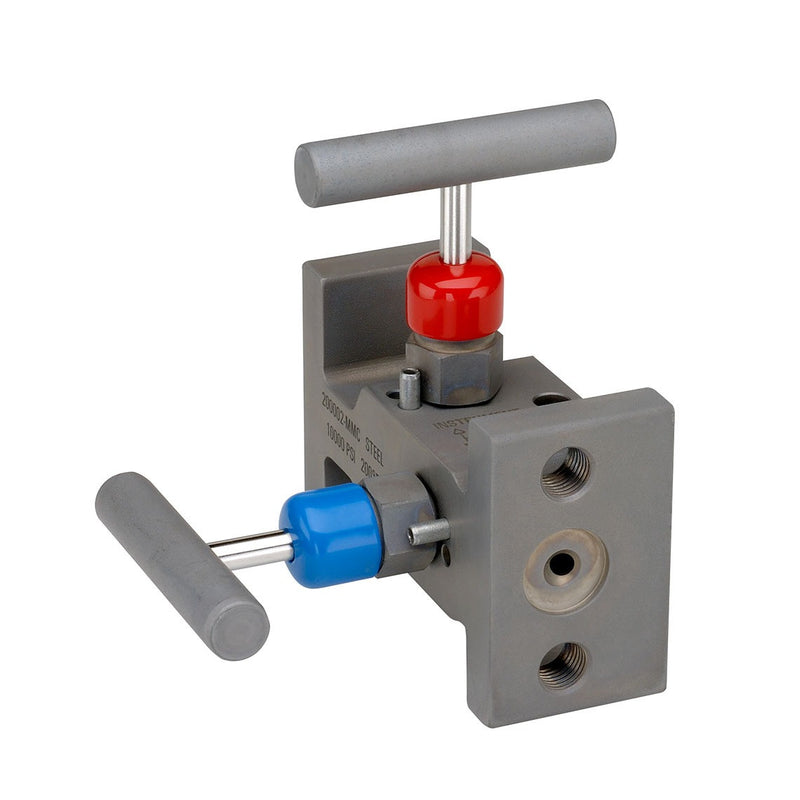

NOSHOK 200002 Series Narrow Block & Bleed 2 Manifold Valves With Hard & Soft Seat, 200002-MMS, Hard Seat, Flange x Flange 316 Stainless Steel, 0.187" Orifice, 2 Manifold Valve with 1/4" NPT Vent
SKU:
200002-MMS
Made in the United States
$309.99
Price on request
Was: $457.89
You Save $147.90
Available
Vent Size1/4 in
Pressure Rating at 200 Degree Fahrenheit (°F) Temperature110,000 psi
Ships direct from the manufacturer — call 888-825-8800 for current lead time
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Manifold Valve |
|---|---|
| Series | 2-Valve |
| Process Type | Static Pressure |
| Vent Size | 1/4 in |
| Vent Type | NPT |
| Valve Type | Flange-Flange |
| Orifice Size | 0.187 in |
| Warranty | 3 yr |
| Brand | NOSHOK |
| Manufacturer Part # | 200002-MMS |
| Size | 1/4" |
| Country of Origin | Made in the United States |
Materials & Construction
| Materials | Zinc-nickel plated steel, electropolished 316 Stainless Steel |
|---|---|
| Seat | Hard Seat |
| Valve Material | Stainless Steel |
| Stem Seal and Type | All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and type Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optional |
Performance
| Pressure Rating at 200 Degree Fahrenheit (°F) Temperature1 | 10,000 psi |
|---|---|
| Flow Coefficient Cv | 0.44 |
Overview
200002 Series - Narrow Block & Bleed 2 Manifold Valves With Hard & Soft Seat
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
- Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation
- Block valve is located on the left side and the bleed valve is located on top in a 90° orientation, venting is to the right
