Save 32%

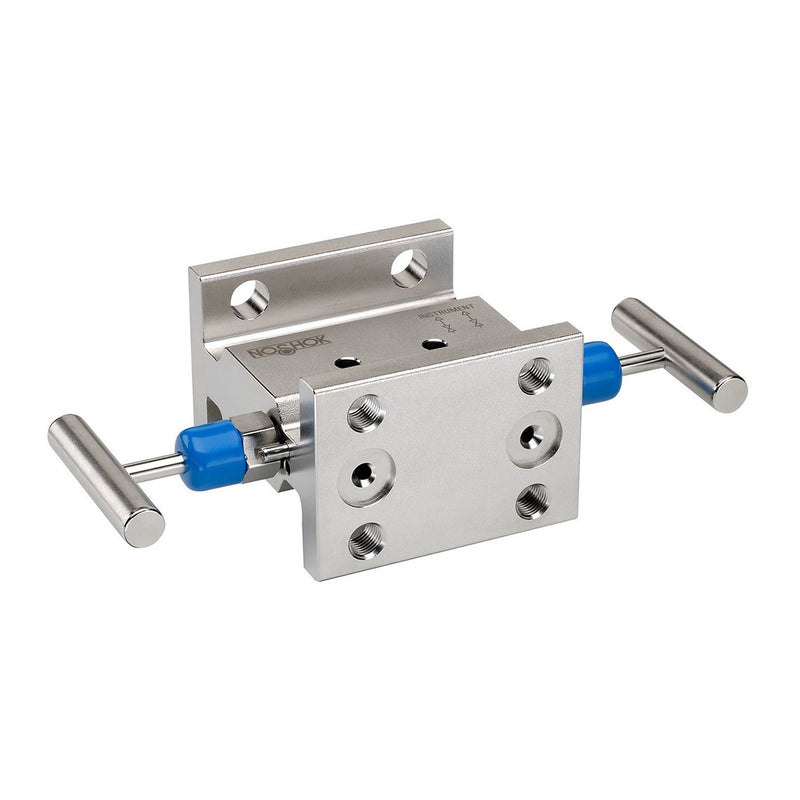

NOSHOK 2020/2120 Series Liquid Level 2 Manifold Valves With Hard Seat & Soft Seat, 2020-MFC, Hard Seat, Flange x 1/2" NPT Female, Steel, 0.187" Orifice 2 Manifold Valve
SKU:
2020-MFC
Made in the United States
$215.99
Price on request
Was: $319.17
You Save $103.18
Available
Connection Size1/2 in
Pressure Rating at 200 Degree Fahrenheit (ºF) Temperature110,000 psi
Connection TypeNational Pipe Thread (NPT) Standard or Flange
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Manifold Valve |
|---|---|
| Series | 2-Valve |
| Valve Type | Flange-Female |
| Orifice Size | 0.187 in |
| Warranty | 3 yr |
| Brand | NOSHOK |
| Manufacturer Part # | 2020-MFC |
| Size | 1/2" |
| Country of Origin | Made in the United States |
Materials & Construction
| Materials | Zinc-nickel plated steel, electropolished 316 Stainless Steel |
|---|---|
| Seat | Hard Seat |
| Valve Material | Steel |
| Stem Seal and Type | All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optional |
Performance
| Pressure Rating at 200 Degree Fahrenheit (ºF) Temperature1 | 10,000 psi |
|---|---|
| Flow Coefficient Cv | 0.44 |
Connections
| Connection Size | 1/2 in |
|---|---|
| Connection Type | National Pipe Thread (NPT) Standard or Flange |
Overview
2020/2120 Series - Liquid Level 2 Manifold Valves With Hard Seat & Soft Seat
- Designed for use with differential pressure transmitters in liquid level applications
- Available in either single flange or double flange connection for direct installation
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
