Save 24%

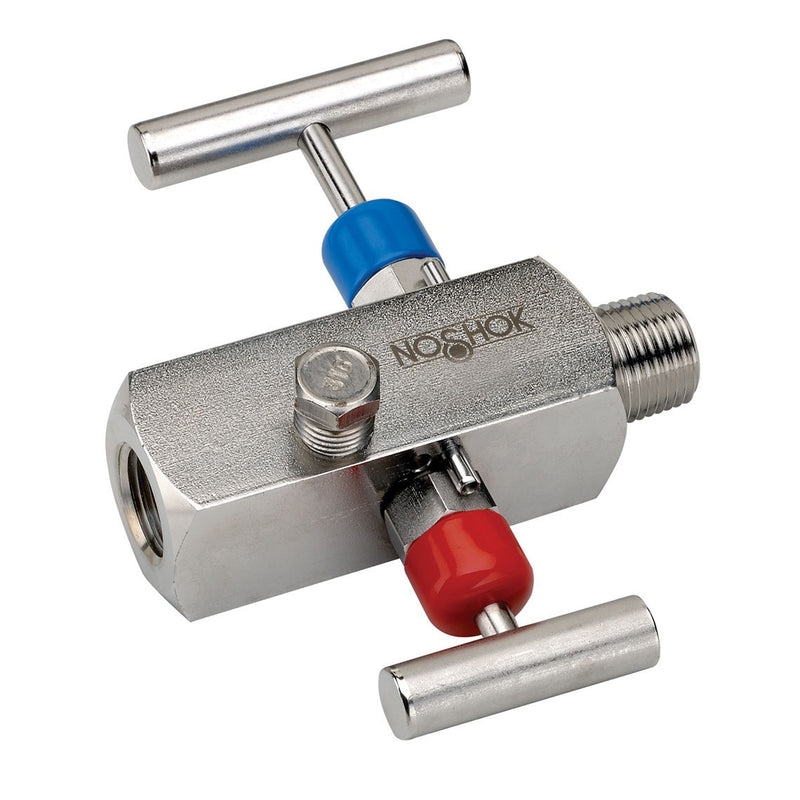

NOSHOK 2070 Series Block & Bleed 2 Needle Valves With Hard Seat, 2070-FMS, 1/2" NPT, Female x Male, 316 Stainless Steel, Hard Seat Block, Bleed 2-Valve
SKU:
2070-FMS
Made in the United States
$307.99
Price on request
Was: $410.42
You Save $102.43
Available
Connection Size1/2 in
Pressure Ratings at 200 Degree Fahrenheit (ºF) Temperature10,000 psi
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Needle Valve |
|---|---|
| Series | 150 |
| Valve Type | Female-Male |
| Orifice Size | 0.187 in |
| Cv Coefficient | 0.44 |
| Process Type | 2-Valve Block and Bleed |
| Length | 4 in |
| Brand | NOSHOK |
| Manufacturer Part # | 2070-FMS |
| Size | 1/2" |
| Country of Origin | Made in the United States |
Materials & Construction
| Valve Material | Stainless Steel |
|---|---|
| Material | Electropolished 316 Stainless Steel |
| Stem Seal and Type | All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optional |
| Seat | Hard Seat |
Performance
| Pressure Ratings at 200 Degree Fahrenheit (ºF) Temperature | 10,000 psi |
|---|
Connections
| Connection Size | 1/2 in |
|---|
Dimensions & Weight
| Weight | 2.0 lb |
|---|
Overview
2070 Series - Block & Bleed 2 Needle Valves With Hard Seat
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
- Block valve isolates the downstream process fluids, and the bleed valve exhausts upstream fluids enabling instruments to be removed without disturbing the permanent piping installation
- The 1/4" NPT vent plug is located 90º to the left and may be removed and replaced with exhaust piping to direct the fluids to a safe location
