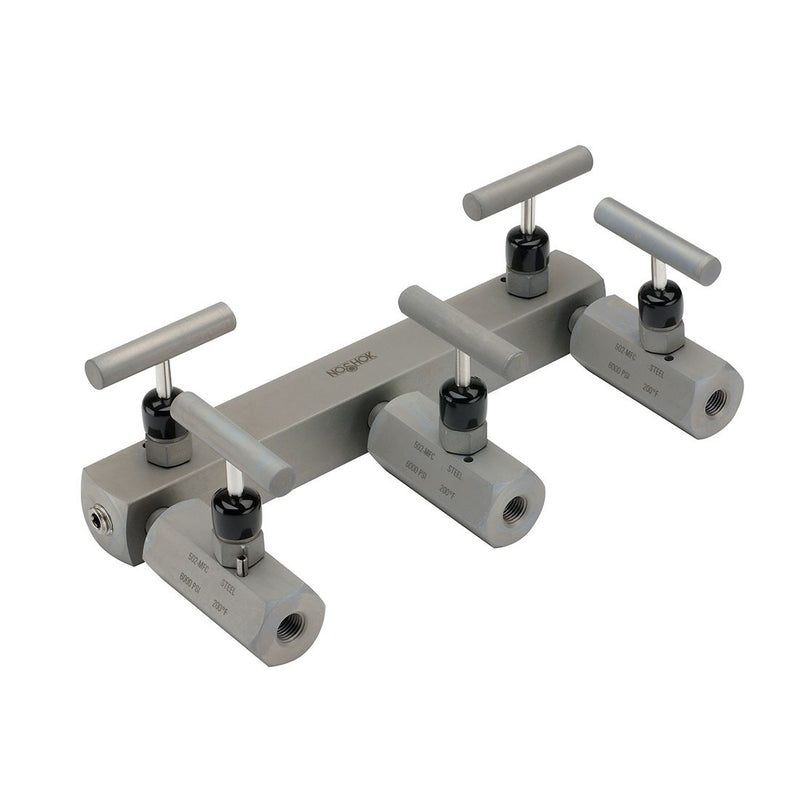

NOSHOK 2180/3180/5180 Series Chart Recorder Manifold Valves With Soft Seat, Soft Seat, 1/4" FNPT x 1/4" FNPT, Steel 2-Valve Chart Recorder Manifold, Soft Seat
SKU:
NSK-2180/3180/5180-SERIES
Made in the United States
Starting at
$292.99
Out of Stock
Select a Model to Order This page shows the full series. Choose a specific model below to view pricing and add to cart.
Available Models
Please select a model to order.
Select a model above to add to cart.
Connection Size1/4 in
Pressure Rating at 200 Degree Fahrenheit (°F) Temperature6,000 psi
Connection TypeNPT
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Manifold Valve |
|---|---|
| Series | 2-Valve |
| Process Type | Chart Recorder Manifold |
| Valve Type | Female-Female |
| Orifice Size | 0.187 in |
| Warranty | 3 yr |
| Brand | NOSHOK |
| Manufacturer Part # | NSK-2180/3180/5180-SERIES |
| Country of Origin | Made in the United States |
Materials & Construction
| Materials | Zinc-nickel plated steel, electropolished 316 Stainless Steel |
|---|---|
| Seat | Soft Seat |
| Valve Material | Steel |
| Stem Seal and Type | All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) packing optional |
Performance
| Pressure Rating at 200 Degree Fahrenheit (°F) Temperature | 6,000 psi |
|---|---|
| Flow Coefficient Cv | 0.76 |
Connections
| Connection Size | 1/4 in |
|---|---|
| Connection Type | NPT |
Overview
2180/3180/5180 Series - Chart Recorder Manifold Valves With Soft Seat
- Designed for use with chart recorders
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
- Replaceable Acetal seat and straight through porting for bidirectional, high capacity flow and easy roddable cleaning
