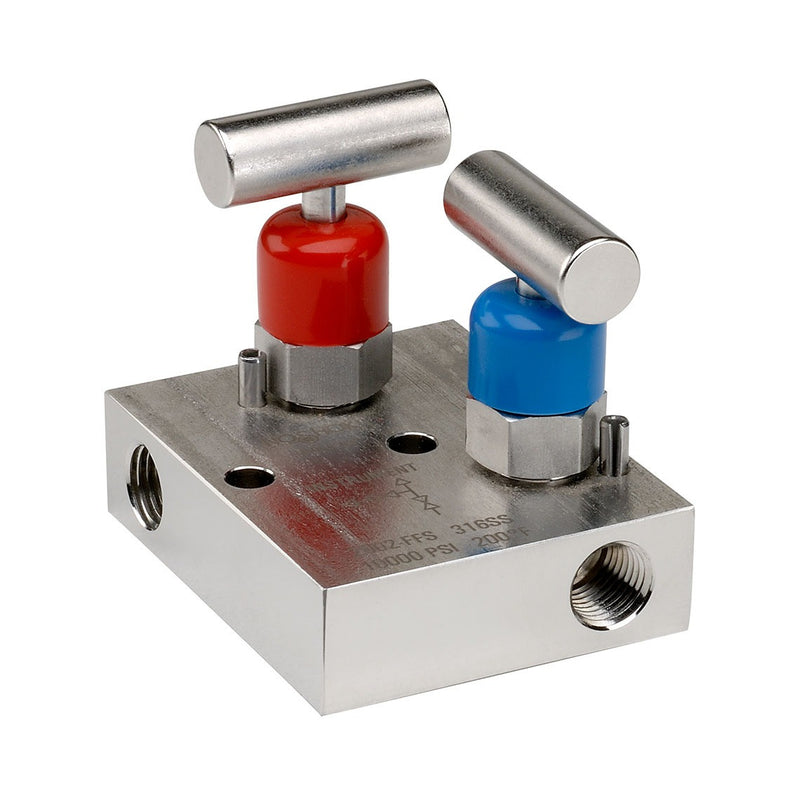

NOSHOK 2602/2702 Series 0.141" Orifice Mini Block & Bleed 2 Manifold Valves With Hard Seat & Soft Tip, Hard Seat, 1/4" FNPT x 1/4" FNPT, Steel, 0.141" Orifice 2 Manifold Valve
SKU:
NSK-2602/2702-SERIES
Made in the United States
$174.99
Price on request
Out of Stock
Connection Size1/4 in
Pressure Rating at 200 Degree Fahrenheit (ºF) Temperature110,000 psi
Connection TypeNPT
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Manifold Valve |
|---|---|
| Series | 2-Valve |
| Process Type | Static Pressure |
| Valve Type | Female-Female |
| Orifice Size | 0.141 in |
| Warranty | 3 yr |
| Brand | NOSHOK |
| Manufacturer Part # | NSK-2602/2702-SERIES |
| Size | 1/4" |
| Country of Origin | Made in the United States |
Materials & Construction
| Materials | Zinc-nickel plated steel, electropolished 316 Stainless Steel |
|---|---|
| Seat | Hard Seat |
| Valve Material | Steel |
| Stem Seal and Type | All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optional |
Performance
| Pressure Rating at 200 Degree Fahrenheit (ºF) Temperature1 | 10,000 psi |
|---|---|
| Flow Coefficient Cv | 0.38 |
Connections
| Connection Size | 1/4 in |
|---|---|
| Connection Type | NPT |
Overview
2602/2702 Series - 0.141" Orifice Mini Block & Bleed 2 Manifold Valves With Hard Seat & Soft Tip
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
- Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation
- Valves are located on the top to fit into compact spaces and two holes are provided for mounting, venting is to the left
