NOSHOK 300 Series Mechanical Compact Single Pole Double Throw (SPDT) Pressure Switches with Adjustable Hysteresis, 1/4" MNPT, M12 x 1 4-Pin
SKU:
NSK-300-PS-SPDT-1/4-in-NPT-M-M12x14-Pin
Made in the United States
Starting at
$124.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Process Connection Size1/4 in
Proof Pressure1870 to 5,000 psig
Electrical ConnectionM12 x 1 4-Pin
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Mechanical Switch |
|---|---|
| Series | 300 |
| Switching Function | Single Pole Double Throw (SPDT) |
| Switch Adjustable Range | -5 to -28 inHg |
| Switch Type | Snap Action with Adjustable Hysteresis |
| Switch Point | Field Adjustable and/or Factory Set |
| Hysteresis | Adjustable |
| Service Life | < 1,000,000 Load Cycles |
| Measuring Element | NBR |
| Warranty | 1 yr |
| Brand | NOSHOK |
| Manufacturer Part # | NSK-300-PS-SPDT-1/4-in-NPT-M-M12x14-Pin |
| Country of Origin | Made in the United States |
Materials & Construction
| Housing Material | Zinc-Nickel Plated Steel |
|---|
Performance
| Environmental Rating | Ingress Protection (IP67) |
|---|---|
| Proof Pressure1 | 870 to 5,000 psig |
| Contact Rating | 6A @ 12/24 Vdc |
| Vacuum Pressure Switch Adjustable Ranges | -5 to -28 inHg |
Connections
| Electrical Connection | M12 x 1 4-Pin |
|---|---|
| Process Connection | NPT Male |
| Process Connection Size | 1/4 in |
Dimensions & Weight
| Weight | 0.2 lb |
|---|
Overview

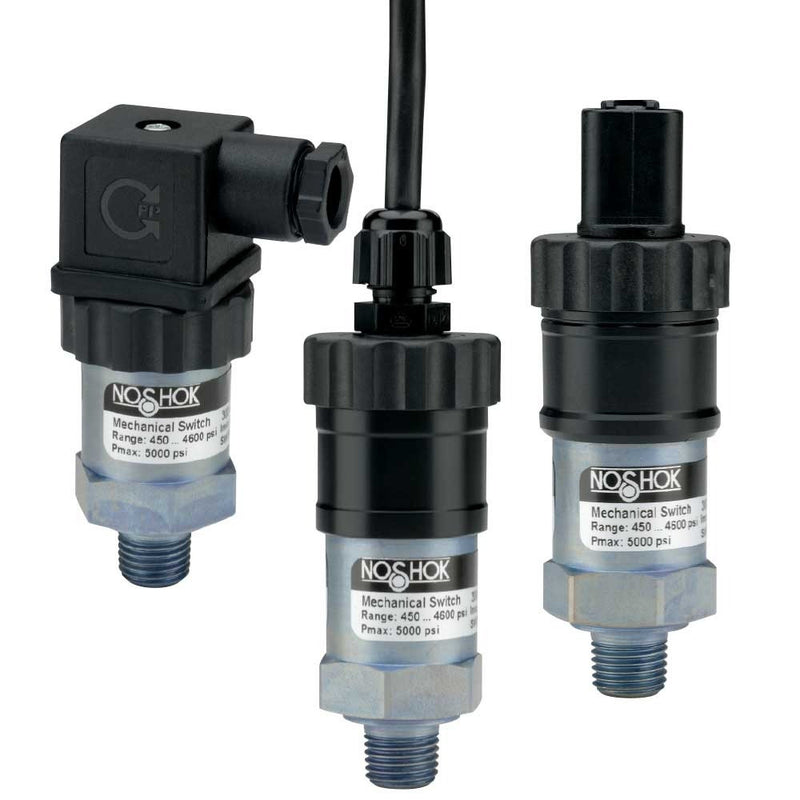

300 Series - Mechanical Compact Single Pole Double Throw (SPDT) Pressure Switches With Adjustable Hysteresis
- Switch adjustment ranges from vacuum through 4,600 psig
- Standard Zinc-nickel with NBR diaphragm wetted parts
- SPST or SPDT snap-action switch with solid Silver contacts
- CE compliant to suppress Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic
- Discharge (ESD)
- RoHS compliant
