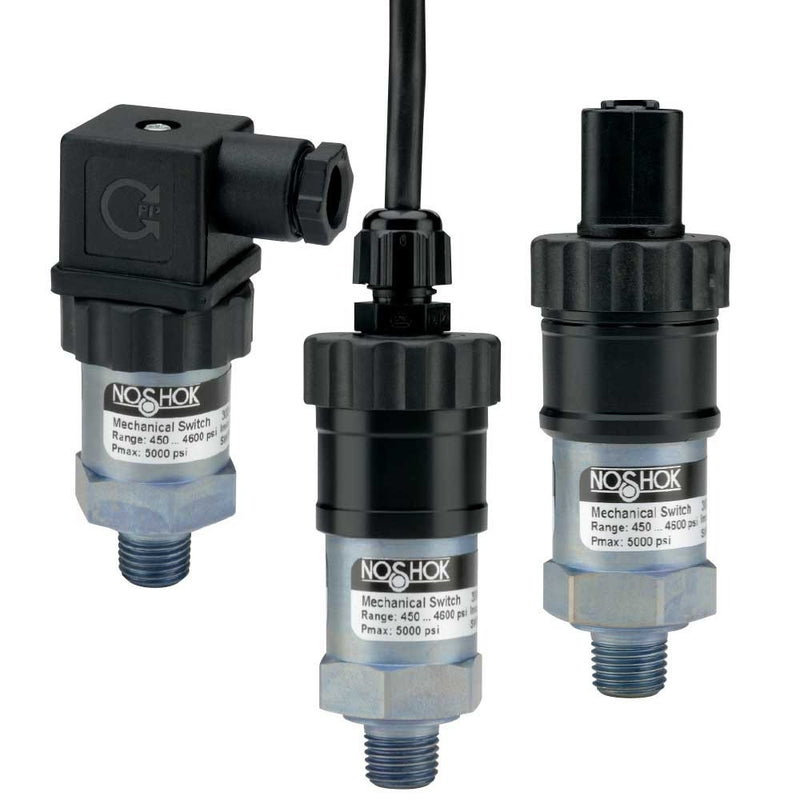

NOSHOK 300 Series Mechanical Compact Single Pole Double Throw (SPDT) Pressure Switches with Adjustable Hysteresis, 300H-3-2-145/1160-113, 1/4" MNPT, 145 to 1,160 psig, Weatherpack Shroud, 3-Pin Male, Attached to 18"

Name: NOSHOK 300 Series Mechanical Compact Single Pole Double Throw (SPDT) Pressure Switches with Adjustable Hysteresis, 300H-3-2-145/1160-113, 1/4" MNPT, 145 to 1,160 psig, Weatherpack Shroud, 3-Pin Male, Attached to 18"
Brand: NOSHOK
SKU: 300H-3-2-145/1160-113

SKU: 300H-3-2-145/1160-113

Made in the United States

$124.99 Was: $138.01 You Save $13.02

Available

Process Connection Size1/4 in

Proof Pressure1870 to 5,000 psig

Electrical ConnectionWeatherpack Shroud, 3-Pin Male, Attached to 18"

Typically ships in 3–5 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Type	Mechanical Switch
Series	300
Switching Function	Single Pole Double Throw (SPDT)
Switch Adjustable Range	145 to 1,160 psig
Switch Type	Snap Action with Adjustable Hysteresis
Switch Point	Field Adjustable and/or Factory Set
Hysteresis	Adjustable
Service Life	< 1,000,000 Load Cycles
Measuring Element	NBR
Warranty	1 yr
Brand	NOSHOK
Manufacturer Part #	300H-3-2-145/1160-113
Size	1/4"
Country of Origin	Made in the United States

Materials & Construction

Housing Material	Zinc-Nickel Plated Steel

Performance

Environmental Rating	Ingress Protection (IP67)
Proof Pressure1	870 to 5,000 psig
Contact Rating	6A @ 12/24 Vdc

Connections

Electrical Connection	Weatherpack Shroud, 3-Pin Male, Attached to 18"
Process Connection	National Pipe Thread MNPT
Process Connection Size	1/4 in

Dimensions & Weight

Weight	0.2 lb
