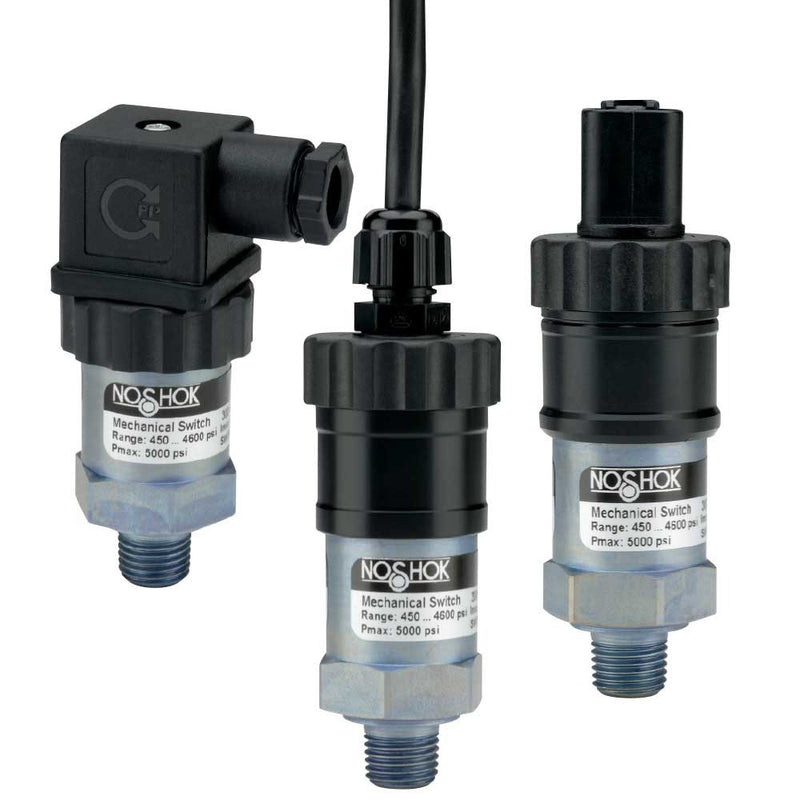

NOSHOK 300 Series Mechanical Compact Single Pole Double Throw (SPDT) Pressure Switches with Adjustable Hysteresis 300L-2-2-30/290-66, 1/4" MNPT, 30 to 290 psig, Deutsch Integral 2-Pin Male (DT04-2P)
SKU:
300L-2-2-30/290-66
Made in the United States
$101.99
Price on request
Was: $112.53
You Save $10.54
Available
Process Connection Size1/4 in
Proof Pressure1870 to 5,000 psig
Electrical ConnectionDeutsch Integral 2-Pin Male (DT04-2P)
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Mechanical Switch |
|---|---|
| Series | 300 |
| Switching Function | Single Pole Single Throw (SPST), Normally Closed |
| Switch Adjustable Range | 30 to 290 psig |
| Switch Type | Snap Action with Adjustable Hysteresis |
| Switch Point | Field Adjustable and/or Factory Set |
| Hysteresis | Adjustable |
| Service Life | < 1,000,000 Load Cycles |
| Measuring Element | NBR |
| Warranty | 1 yr |
| Brand | NOSHOK |
| Manufacturer Part # | 300L-2-2-30/290-66 |
| Size | 1/4" |
| Country of Origin | Made in the United States |
Materials & Construction
| Housing Material | Zinc-Nickel Plated Steel |
|---|
Performance
| Proof Pressure1 | 870 to 5,000 psig |
|---|---|
| Contact Rating | 6A @ 12/24 Vdc |
| Environmental Rating | Ingress Protection (IP67) |
Connections
| Electrical Connection | Deutsch Integral 2-Pin Male (DT04-2P) |
|---|---|
| Process Connection | National Pipe Thread MNPT |
| Process Connection Size | 1/4 in |
Dimensions & Weight
| Weight | 0.2 lb |
|---|
Overview
300 Series - Mechanical Compact Single Pole Double Throw (SPDT) Pressure Switches With Adjustable Hysteresis
- Switch adjustment ranges from vacuum through 4,600 psig
- Standard Zinc-nickel with NBR diaphragm wetted parts
- SPST or SPDT snap-action switch with solid Silver contacts
- CE compliant to suppress Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic
- Discharge (ESD)
- RoHS compliant
