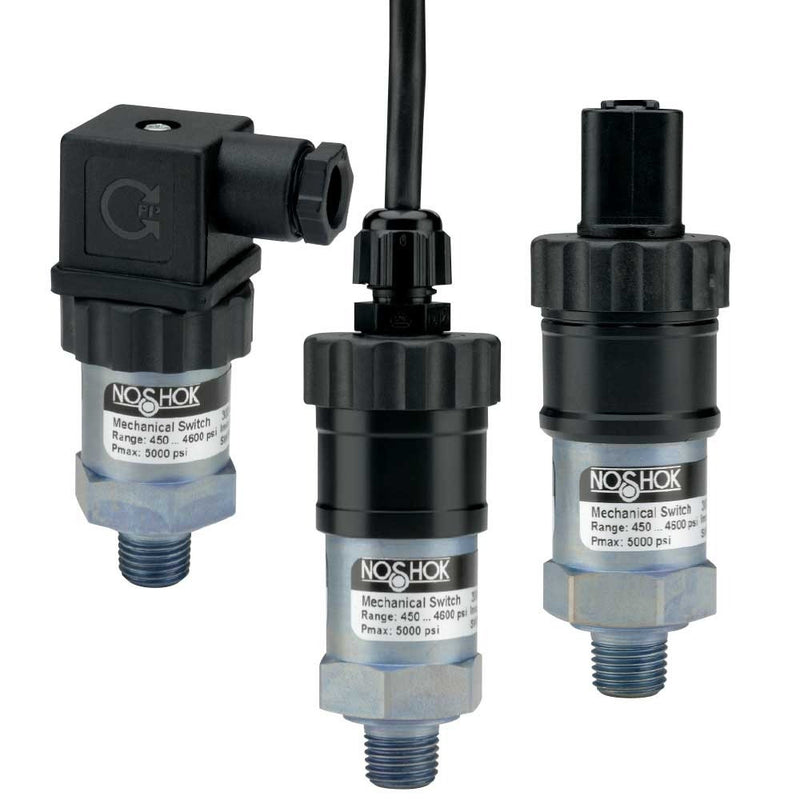

NOSHOK 300 Series Mechanical Compact Single Pole Double Throw (SPDT) Pressure Switches with Adjustable Hysteresis, 300V-3-2-5/28-vac-101, 1/4" MNPT, -5 to -28 inHg, Deutsch 3-Pin Male (DT04-3P), Attached to 18" Cable

Name: NOSHOK 300 Series Mechanical Compact Single Pole Double Throw (SPDT) Pressure Switches with Adjustable Hysteresis, 300V-3-2-5/28-vac-101, 1/4" MNPT, -5 to -28 inHg, Deutsch 3-Pin Male (DT04-3P), Attached to 18" Cable
Brand: NOSHOK
SKU: 300V-3-2-5/28-vac-101

SKU: 300V-3-2-5/28-vac-101

Made in the United States

$120.99 Was: $134.08 You Save $13.09

Available

Process Connection Size1/4 in

Proof Pressure1870 to 5,000 psig

Electrical ConnectionDeutsch 3-Pin Male (DT04-3P), Attached to 18 in. Cable

Typically ships in 3–5 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Type	Mechanical Switch
Series	300
Switching Function	Single Pole Double Throw (SPDT)
Switch Adjustable Range	-5 to -28 inHg
Switch Type	Snap Action with Adjustable Hysteresis
Switch Point	Field Adjustable and/or Factory Set
Hysteresis	Adjustable
Service Life	< 1,000,000 Load Cycles
Measuring Element	NBR
Warranty	1 yr
Brand	NOSHOK
Manufacturer Part #	300V-3-2-5/28-vac-101
Size	1/4"
Country of Origin	Made in the United States

Materials & Construction

Housing Material	Zinc-Nickel Plated Steel

Performance

Environmental Rating	Ingress Protection (IP67)
Proof Pressure1	870 to 5,000 psig
Contact Rating	6A @ 12/24 Vdc
Vacuum Pressure Switch Adjustable Ranges	-5 to -28 inHg

Connections

Electrical Connection	Deutsch 3-Pin Male (DT04-3P), Attached to 18 in. Cable
Process Connection	National Pipe Thread MNPT
Process Connection Size	1/4 in

Dimensions & Weight

Weight	0.2 lb
