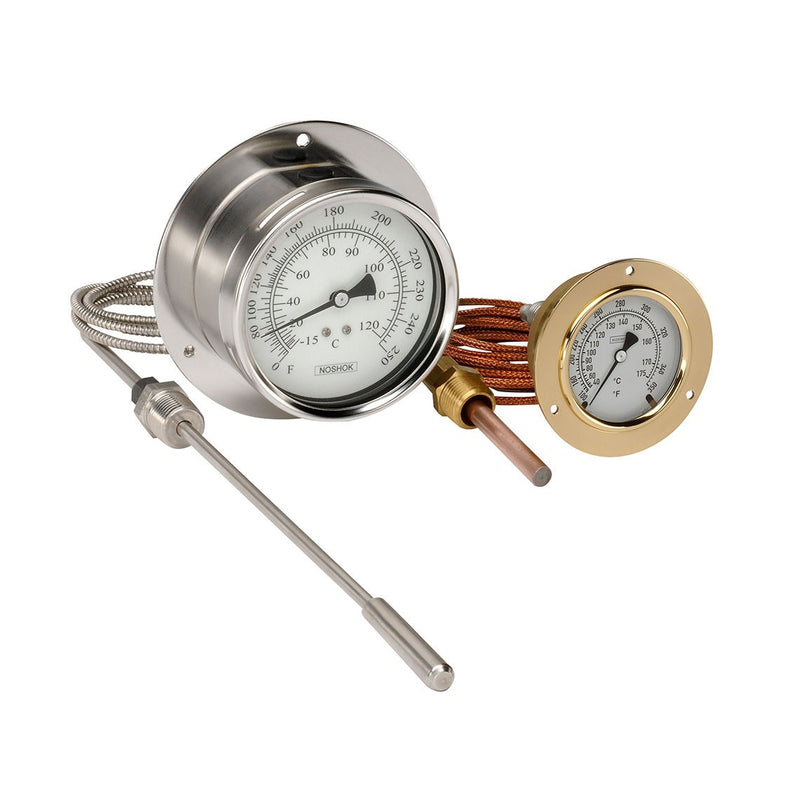

NOSHOK 300 Series Vapor Actuated Remote Dial Indicating Thermometers, Armored Copper Capillary, 1/2" NPT Union Copper Bulb, -40º Service Fill
SKU:
NSK-300-IT-40-Service-Fill
Made in the United States
Starting at
$408.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Dial Size2-1/2 in
Connection Size1/2 in
Temperature [Min]30 ºF
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Type | Remote Dial Indicating Thermometer |
|---|---|
| Series | 300 |
| Dial Size | 2-1/2 in |
| Case Type | Brass Case, Back Connection |
| Full Scale Accuracy (±) | 2.0 % |
| Accuracy Grade | B |
| Lens | Acrylic |
| Pointer | Aluminum, Black Finish |
| Dial | Aluminum, white background, dual scale, black Celsius scale and black Fahrenheit scale |
| Gauge Fill Fluids | -40º Service |
| Mounting Options | Chrome Front Flange |
| Warranty | 1 yr |
| Capillary Length | 10 ft |
| Brand | NOSHOK |
| Manufacturer Part # | NSK-300-IT-40-Service-Fill |
| Country of Origin | Made in the United States |
Materials & Construction
| Capillary Types/Materials | Armored Copper |
|---|---|
| Bulb Styles/Materials | 1/2 in. NPT Union Copper |
Performance
| Temperature [Min] | 30 ºF |
|---|---|
| Temperature [Max] | 240 ºF |
Connections
| Connection Size | 1/2 in |
|---|---|
| Connection Type | National Pipe Thread (NPT) |
Dimensions & Weight
| Bulb Dimensions | 2-5/8 x 3/8 in |
|---|
Overview
300 Series - Vapor Actuated Remote Dial Indicating Thermometers
- Indicates media temperature using a temperature-actuated liquid in the sensing element and a highly accurate, high quality pressure gauge
- As the media temperature increases, the capillary fill fluid vaporizes, increasing pressure in the Bourdon tube to activate the movement and pointer for proper indication
- Brass, stainless steel, or phenolic case
- Dry or liquid filled
- Bottom, back or lower back connected
- The dial scale graduations are non-linear, therefore the highest degree of accuracy and readability is found in the upper half of the scale
