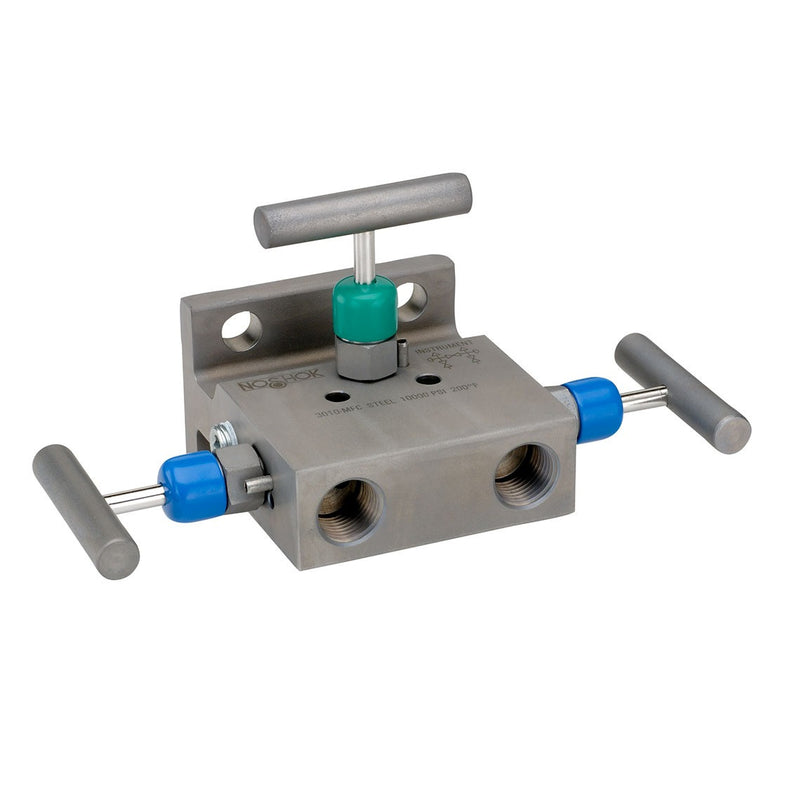

NOSHOK 3010/3110 Series Differential Pressure 3 Manifold Valves With Hard & Soft Seat, Hard Seat, 1/2" FNPT x 1/2" FNPT, Steel, 0.187" Orifice 3 Manifold Valve

Name: NOSHOK 3010/3110 Series Differential Pressure 3 Manifold Valves With Hard & Soft Seat, Hard Seat, 1/2" FNPT x 1/2" FNPT, Steel, 0.187" Orifice 3 Manifold Valve
Brand: NOSHOK
SKU: NSK-3010/3110-SERIES

SKU: NSK-3010/3110-SERIES

Made in the United States

Starting at $217.99

Select a Model to Order This page shows the full series. Choose a specific model below to view pricing and add to cart.

Available Models

Hard Seat, 1/2" NPT Female x 1/2" NPT Female, Steel Soft Seat, 1/2" NPT Female x 1/2" NPT Female, Steel Hard Seat, Flange x 1/2" NPT Female, Steel Hard Seat, Flange x Flange, Steel Soft Seat, Flange x 1/2" NPT Female, Steel Soft Seat, Flange x Flange, Steel Hard Seat, 1/2" NPT Female x 1/2" NPT Female, 316 SS Soft Seat, 1/2" NPT Female x 1/2" NPT Female, 316 SS Hard Seat, Flange x 1/2" NPT Female, 316 SS Hard Seat, Flange x Flange, 316 SS Soft Seat, Flange x 1/2" NPT Female, 316 SS Soft Seat, Flange x Flange, 316 SS Hard Seat, 1/2" NPT Female x 1/2" NPT Female, 316 SS, Polytetrafluoroethylene (PTFE) Packing Hard Seat, Flange x 1/2" NPT Female, 316 SS, Polytetrafluoroethylene (PTFE) Packing Hard Seat, Flange x 1/2" NPT Female, 316 SS, Non-Rotating SS Ball, Grafoil Packing

Select a model above to add to cart.

Connection Size1/2 in

Pressure Rating at 200 Degree Fahrenheit (°F) Temperature10,000 psi

Connection TypeNPT Standard or Flange

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Type	Manifold Valve
Series	3-Valve
Process Type	Differential Pressure
Valve Type	Female-Female
Orifice Size	0.187 in
Warranty	3 yr
Brand	NOSHOK
Manufacturer Part #	NSK-3010/3110-SERIES
Country of Origin	Made in the United States

Materials & Construction

Materials	Zinc-nickel plated steel, electropolished 316 Stainless Steel
Seat	Hard Seat
Valve Material	Steel
Stem Seal and Type	All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optional

Performance

Pressure Rating at 200 Degree Fahrenheit (°F) Temperature	10,000 psi
Flow Coefficient Cv	0.44

Connections

Connection Size	1/2 in
Connection Type	NPT Standard or Flange

Download Specification Sheet (PDF)

Overview

3010/3110 Series - Differential Pressure 3 Manifold Valves With Hard & Soft Seat

Available in block, single flange, or double flange connection for remote or direct installation
Designed for use with differential pressure transmitters incorporating two isolation valves and an equalizing valve in differential pressure measurement
100% helium leak tested to 1 x 10^-4 ml/s for guaranteed performance and reliability
