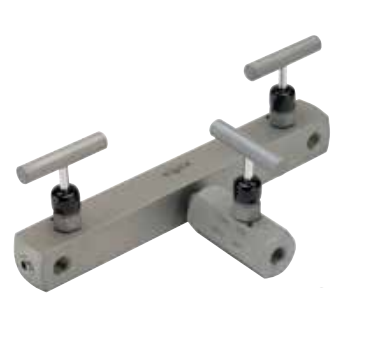

NOSHOK 2180/3180/5180 Series Chart Recorder Manifold Valves With Soft Seat, 3180-FFS, Soft Seat, 1/4" NPT Female x 1/4" NPT Female, 316 SS, 0.187" 3-Valve Chart Recorder Manifold, Soft Seat
Brand : NOSHOK
MSRP: $566.10
Starting At:
$382.99
(You save
$183.11
)
- SKU:
- 3180-FFS
- Availability:
- Call For Pricing
- Size Dropdown:
- True
Availability:
Limited Quantity Available
2180/3180/5180 Series - Chart Recorder Manifold Valves With Soft Seat
- Designed for use with chart recorders
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
- Replaceable Acetal seat and straight through porting for bidirectional, high capacity flow and easy roddable cleaning
Technical Specifications
Type
Manifold Valve
Materials
Zinc-nickel plated steel, electropolished 316 Stainless Steel
Series
3-Valve
Seat
Soft Seat
Process Type
Chart Recorder Manifold
Connection Size
1/4 in
Connection Type
National Pipe Thread (NPT)
Valve Type
Female-Female
Valve Material
Stainless Steel
Pressure Rating at 200 Degree Fahrenheit (ºF) Temperature
6,000 psi
Orifice Size
0.187 in
Flow Coefficient Cv
0.76
Stem Seal and Type
All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) packing optional
Warranty
3 yr
Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Limitations Which Apply Are
- These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.
In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Options
- O-ring materials, handles, packings, regulating stem and stem tips
Additional Options
- Packings
- PTFE (P1)
- Stem Tips
- Non-rotating (316 stainless) (T1)
- O-rings
- EPDM (EM1)
- FFKM (Perfluoroelastomer ( FFKM) 3018 or equivalent) (KZ1)
- NBR (NB1)
Note for O-rings - Other o-ring materials available on request.
- Handles
- 1" Round knurled (HL3)
- 1-3/8" Phenolic (HL4)
- 1-3/4" Phenolic (HL5)
Options and Accessories
- Installed Options and Accessories
- Packing
- PTFE Manifold Gasket Ring (RG1-TF1)
- Graphite Manifold Gasket (RG1-GF1)
- O-Ring Options
- Aflas (AF1) (For 1/8" NPT to 1/2" NPT only)
- Perfluoroelastomer (FFKM) 3018 (KZ1) (For 1/8" NPT to 1/2" NPT only)
- Perfluoroelastomer (FFKM) 4079 (KZ2) (For 1/8" NPT to 1/2" NPT only)
- Simriz 89D (KZ3) (For 1/8" NPT to 1/2" NPT only)
- Perfluoroelastomer (FFKM) 7075 (KZ4) (For 1/8" NPT to 1/2" NPT only)
- Elast O Lion (EL1) (For 1/8" NPT to 1/2" NPT only)
- EPDM 80 (EM1) (For 1/8" NPT to 1/2" NPT only)
- EPDM 90 (EM2) (For 1/8" NPT to 1/2" NPT only)
- EPDM 70 (EM3) (For 1/8" NPT to 1/2" NPT only)
- NBR 70 (NB1) (For 1/8" NPT to 1/2" NPT only)
- EPDM 70 (EM1) (For 3/4" NPT to 1-1/2" NPT only)
- Perfluoroelastomer (FFKM) 4079 (KZ2) (For 3/4" NPT to 1-1/2" NPT only)
- Elast O Lion (EL1) (For 3/4" NPT to 1-1/2" NPT only)
- Low Temperature FKM (VT1) (For 1/8" NPT to 1/2" NPT only)
- Low Temperature FKM (VT2) (For 3/4" NPT to 1-1/2" NPT only)
Additional Information
- Blow-out proof stem provides a secondary stem seal in the full open position
- FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE packing optional
- All stems are 316 Stainless Steel
- All stem threads are rolled for strength and ease of operation
- One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads
- Slotted spring pin to prevent accidental loosening
- Vinyl dust caps for bonnets and stems (non-packing)
