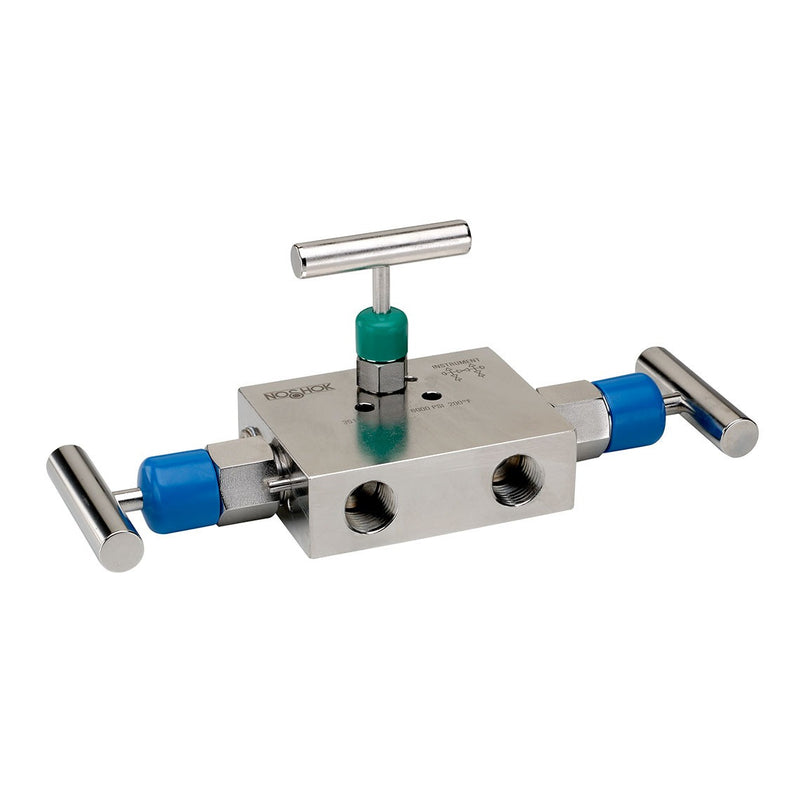

NOSHOK 3510 Series 0.375" Orifice Differential Pressure 3 Manifold Valves With Soft Seat, 3510-FFC, Soft Seat, 1/2" NPT Female x 1/2" NPT Female, Steel, 0.375" Orifice 3 Manifold Valve
SKU:
3510-FFC
Made in the United States
$255.99
Price on request
Was: $378.18
You Save $122.19
Available
Available Models
1/2" NPT Female x 1/2" NPT Female, Steel
Flange x 1/2" NPT Female, Steel
1/2" NPT Female x 1/2" NPT Female, 316 SS
Flange x 1/2" NPT Female, 316 SS
Connection Size1/2 in
Pressure Rating at 200 Degree Fahrenheit (°F) Temperature16,000 psi
Connection TypeNational Pipe Thread (NPT) Standard or Flange
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Manifold Valve |
|---|---|
| Series | 3-Valve |
| Process Type | Differential Pressure |
| Valve Type | Female-Female |
| Orifice Size | 0.375 in |
| Warranty | 3 yr |
| Brand | NOSHOK |
| Manufacturer Part # | 3510-FFC |
| Size | 1/2" |
| Country of Origin | Made in the United States |
Materials & Construction
| Materials | Zinc-nickel plated steel, electropolished 316 Stainless Steel |
|---|---|
| Seat | Soft Seat |
| Valve Material | Steel |
| Stem Seal and Type | All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads |
Performance
| Pressure Rating at 200 Degree Fahrenheit (°F) Temperature1 | 6,000 psi |
|---|---|
| Flow Coefficient Cv | 3.0 |
Connections
| Connection Size | 1/2 in |
|---|---|
| Connection Type | National Pipe Thread (NPT) Standard or Flange |
Overview
3510 Series - 0.375" Orifice Differential Pressure 3 Manifold Valves With Soft Seat
- Designed for use with differential pressure transmitters incorporating two isolation valves and an equalizing valve in differential pressure measurement
- Available in block, single flange, or double flange connection for remote or direct installation
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
