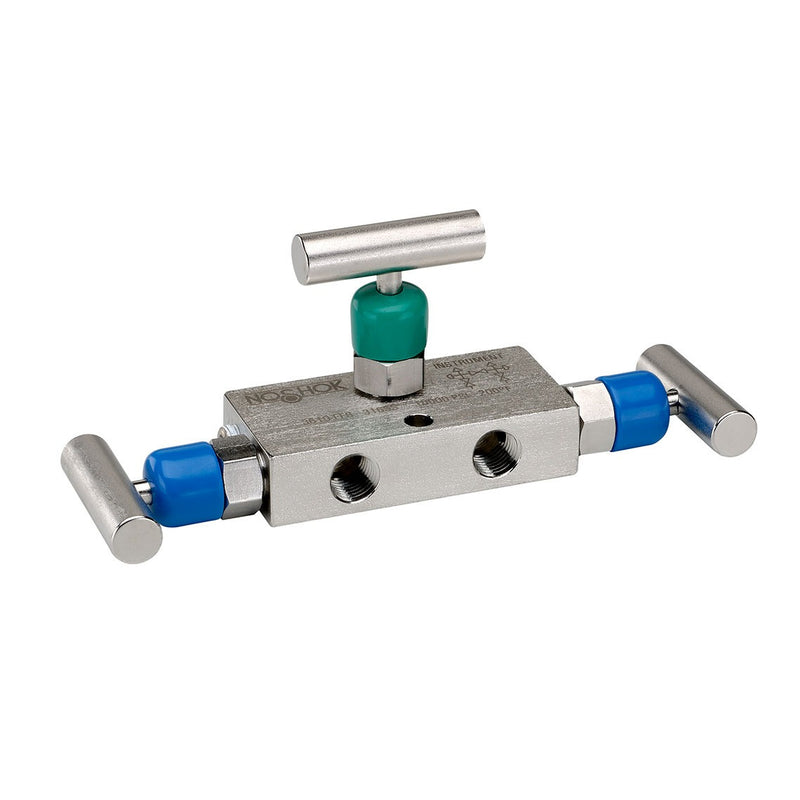

NOSHOK 3610/3710 Series 0.141" Orifice Differential Pressure Mini 3 Manifold Valves With Hard Seat & Soft Tip, Hard Seat, 1/4" FNPT x 1/4" FNPT, Steel, 0.141" Orifice 3 Mini Manifold Valve

Name: NOSHOK 3610/3710 Series 0.141" Orifice Differential Pressure Mini 3 Manifold Valves With Hard Seat & Soft Tip, Hard Seat, 1/4" FNPT x 1/4" FNPT, Steel, 0.141" Orifice 3 Mini Manifold Valve
Brand: NOSHOK
SKU: NSK-3610/3710-Series

SKU: NSK-3610/3710-Series

Made in the United States

Starting at $187.99

Select a Model to Order This page shows the full series. Choose a specific model below to view pricing and add to cart.

Available Models

Hard Seat, Steel, 0.141" Orifice 3 Mini Manifold Valve Soft Tip, Steel 3 Manifold Valve 3610-FFS 3710-FFS

Select a model above to add to cart.

Connection Size1/4 in

Pressure Rating at 200 Degree Fahrenheit (°F) Temperature110,000 psi

Connection TypeNPT

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Type	Manifold Valve
Series	3-Valve
Process Type	Differential Pressure
Valve Type	Female-Female
Orifice Size	0.141 in
Warranty	3 yr
Brand	NOSHOK
Manufacturer Part #	NSK-3610/3710-Series
Country of Origin	Made in the United States

Materials & Construction

Materials	Zinc-nickel plated steel, electropolished 316 Stainless Steel
Seat	Hard Seat
Valve Material	Steel
Stem Seal and Type	All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optional

Performance

Pressure Rating at 200 Degree Fahrenheit (°F) Temperature1	10,000 psi
Flow Coefficient Cv	0.44

Connections

Connection Size	1/4 in
Connection Type	NPT

Download Specification Sheet (PDF)

Overview

3610/3710 Series - 0.141" Orifice Differential Pressure Mini 3 Manifold Valves with Hard Seat and Soft Tip

Compact design is ideal for installations with limited space, such as behind panels or in cabinets
Designed for use with differential pressure transmitters incorporating two isolation valves and an equalizing valve in differential pressure measurement
100% helium leak tested to 1 x 10^-4 ml/s for guaranteed performance and reliability
