Save 35%

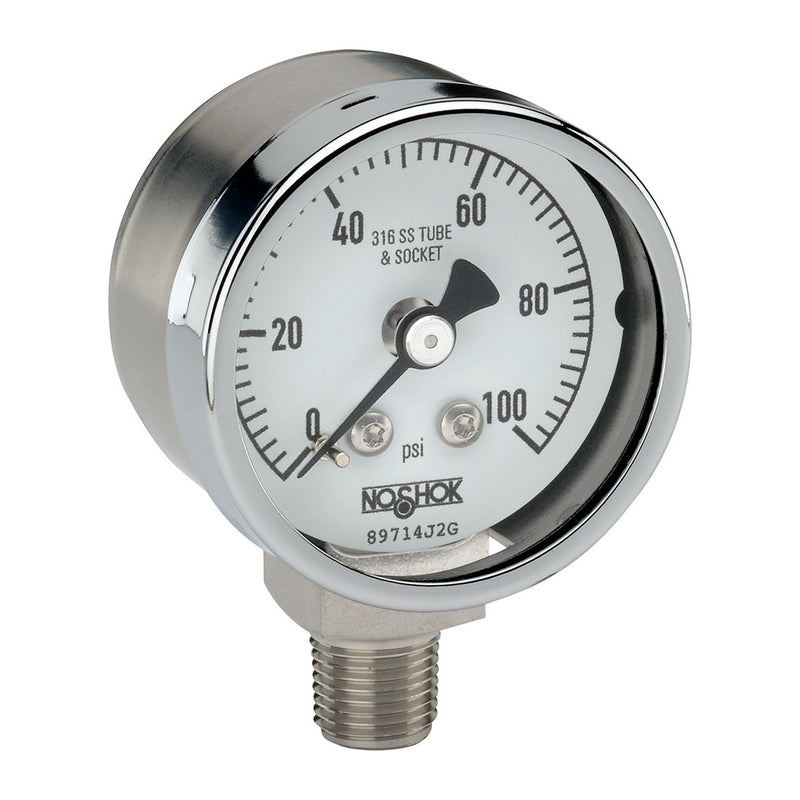

NOSHOK 400/500 Series All Stainless Steel Dry & Liquid Filled Pressure Gauges, 304 Stainless Steel Case, 316 Stainless Steel Internals, 1/8" MNPT Bottom Connection
SKU:
NOSHOK-400/500-Series-1-1/2-in
Made in the United States
Starting at
$103.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Connection Size1/8 in
Pressure Range0 to 100 psi
Connection TypeNPT
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Pressure Gauge |
|---|---|
| Full Scale Best Fit Straight Line (BFSL) Accuracy (±) | 2.5 % |
| Dial | Aluminum, White Background with Black Scale. Single Scale psi. Ultraviolet (UV) Resistant. |
| Gauge Size | 1-1/2 in |
| Case Type | All Stainless Steel (SS), Dry, Bottom connection |
| Scale Option | psi Single Scale |
| Measuring Element | 316 Stainless Steel C-Type Bourdon Tube |
| Pointer | Black Finished Aluminum |
| Movement | Stainless Steel with Highly Polished Bearing Surfaces |
| Warranty | 1 yr |
| Brand | NOSHOK |
| Manufacturer Part # | NOSHOK-400/500-Series-1-1/2-in |
| Country of Origin | Made in the United States |
Materials & Construction
| Cover Ring Material | Polished 304 Stainless Steel |
|---|---|
| Lens/Display Material | Instrument glass |
| Case Material | 304 Stainless Steel with Safety Relief Plug, Optional 316 Stainless Steel |
Performance
| Pressure Range | 0 to 100 psi |
|---|
Connections
| Connection Type | NPT |
|---|---|
| Connection Size | 1/8 in |
| Connection Location | Bottom |
| Connection Material | Stainless Steel |
Overview
400/500 Series - All Stainless Steel Dry & Liquid Filled Pressure Gauges
- Corrosion-resistant fillable dry or liquid-filled gauge
- Vacuum and compound ranges through 0 psi to 20,000 psi
- 316 Stainless Steel wetted parts
- Cleaning for Oxygen Service (O2) is available only for dry or HL (Halocarbon) filled gauges
- For gauges with MIP, GY40 fill is standard for liquid filled gauges
