Save 32%

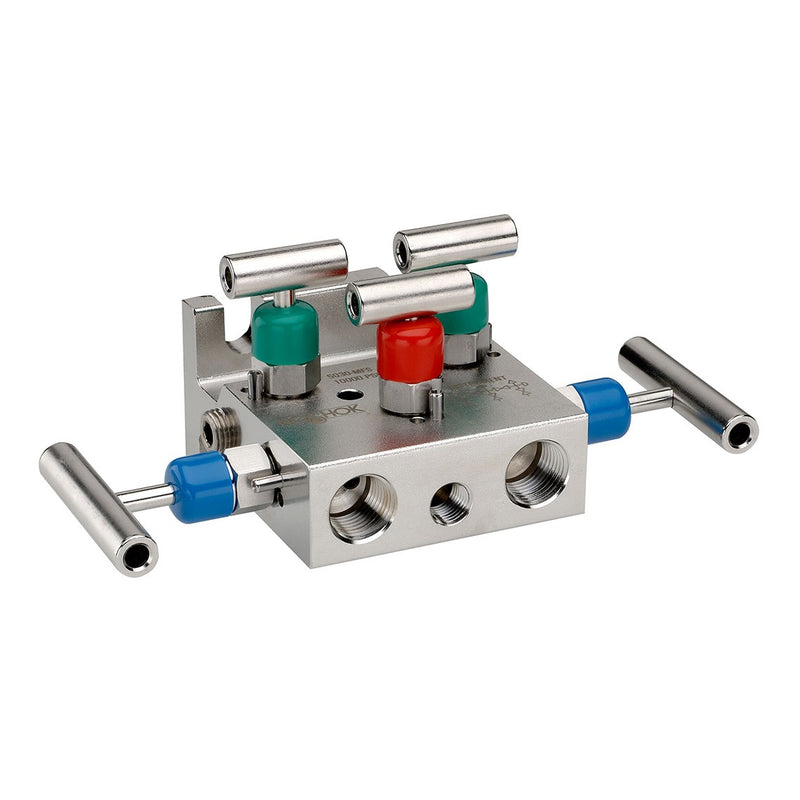

NOSHOK 5030/5130 Series Natural Gas 5 Manifold Valves With Hard & Soft Seat/Tip, Hard Seat, 1/2" FNPT x 1/2" FNPT, Steel, 0.187" Orifice 5 Manifold Valve
SKU:
NSK-5030/5130-SERIES
Made in the United States
Starting at
$240.99
Out of Stock
Select a Model to Order This page shows the full series. Choose a specific model below to view pricing and add to cart.
Available Models
Hard Seat, 1/2" NPT Female x 1/2" NPT Female, Steel
Hard Seat, Flange x 1/2" NPT Female, Steel
Hard Seat, Flange x Flange, Steel
Hard Seat, 1/2" NPT Female x 1/2" NPT Female, 316 SS
Hard Seat, 1/2" NPT Female x 1/2" NPT Female, 316 SS, Flare Pattern™
Hard Seat, Flange x 1/2" NPT Female, 316 SS
Hard Seat, Flange x 1/2" NPT Female, 316 SS, Flare Pattern™
Hard Seat, Flange x Flange, 316 SS, Flare Pattern™
Please select a model to order.
Select a model above to add to cart.
Connection Size1/2 in
Pressure Rating at 200 Degree Fahrenheit (°F) Temperature110,000 psi
Connection TypeNPT or Flange
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Manifold Valve |
|---|---|
| Series | 5-Valve |
| Process Type | Natural Gas Flow |
| Valve Type | Female-Female |
| Orifice Size | 0.187 in |
| Warranty | 3 yr |
| Brand | NOSHOK |
| Manufacturer Part # | NSK-5030/5130-SERIES |
| Country of Origin | Made in the United States |
Materials & Construction
| Materials | Zinc-nickel plated carbon steel, electropolished 316 Stainless Steel |
|---|---|
| Seat | Hard Seat |
| Valve Material | Steel |
| Stem Seal and Type | All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads |
Performance
| Pressure Rating at 200 Degree Fahrenheit (°F) Temperature1 | 10,000 psi |
|---|---|
| Flow Coefficient Cv | 0.44 |
Connections
| Connection Size | 1/2 in |
|---|---|
| Connection Type | NPT or Flange |
Overview
5030/5130 Series - Natural Gas 5 Manifold Valves With Hard & Soft Seat/Tip
- Designed for use with differential pressure transmitters incorporating two isolation valves, two equalizing valves and a vent valve required in natural gas applications
- Flare Pattern™ valve configuration provides maximum clearance for fingers during operation
- Soft tip valves feature a patented Acetal non-rotating soft tip stem, and a back-up metal-to-metal seal (U.S. Patent 6,820,857)
