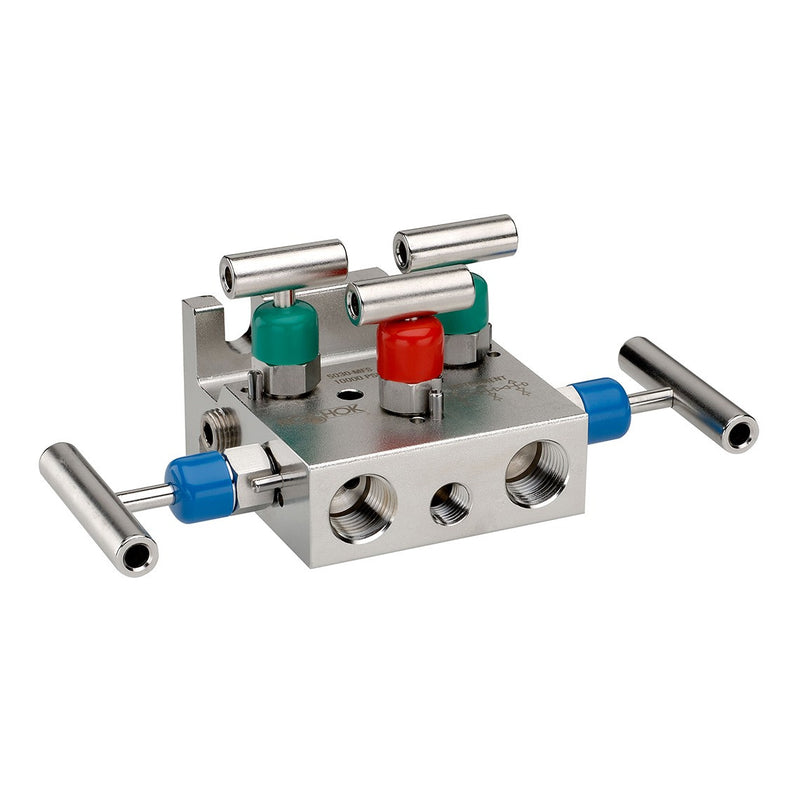

NOSHOK 5530 Series 0.375" Orifice Natural Gas 5 Manifold Valves With Soft Seat/Tip, 5530-MMC-FP, Soft Seat, Flange x Flange, Steel, Flare Pattern™ ,0.375" Orifice 5 Manifold Valve
SKU:
5530-MMC-FP
Made in the United States
$355.99
Price on request
Was: $526.27
You Save $170.28
Available
Connection Size1/2 in
Pressure Rating at 200 Degree Fahrenheit (ºF) Temperature6,000 psi
Connection TypeNational Pipe Thread (NPT) or Flange
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Manifold Valve |
|---|---|
| Series | 5-Valve |
| Process Type | Natural Gas Flow |
| Valve Type | Flange-Flange |
| Body Configuration | Flare |
| Orifice Size | 0.375 in |
| Warranty | 3 yr |
| Brand | NOSHOK |
| Manufacturer Part # | 5530-MMC-FP |
| Size | 1/2" |
| Country of Origin | Made in the United States |
Materials & Construction
| Seat | Soft Seat/Tip |
|---|---|
| Valve Material | Steel |
| Materials | Zinc-Nickel Plated Carbon Steel |
| Stem Seal and Type | All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads |
Performance
| Pressure Rating at 200 Degree Fahrenheit (ºF) Temperature | 6,000 psi |
|---|---|
| Flow Coefficient Cv | 3.0 |
Connections
| Connection Size | 1/2 in |
|---|---|
| Connection Type | National Pipe Thread (NPT) or Flange |
Dimensions & Weight
| Weight | 7.5 lb |
|---|
Overview
5530 Series - 0.375" Orifice Natural Gas 5 Manifold Valves With Soft Seat/Tip
- Designed for use with differential pressure transmitters incorporating two isolation valves, two equalizing valves and a vent valve required in natural gas applications
- Flare Pattern™ valve configuration provides maximum clearance for fingers during operation
- Soft tip valves feature a patented Acetal non-rotating soft tip stem, and a back-up metal-to-metal seal (U.S. Patent 6,820,857)
