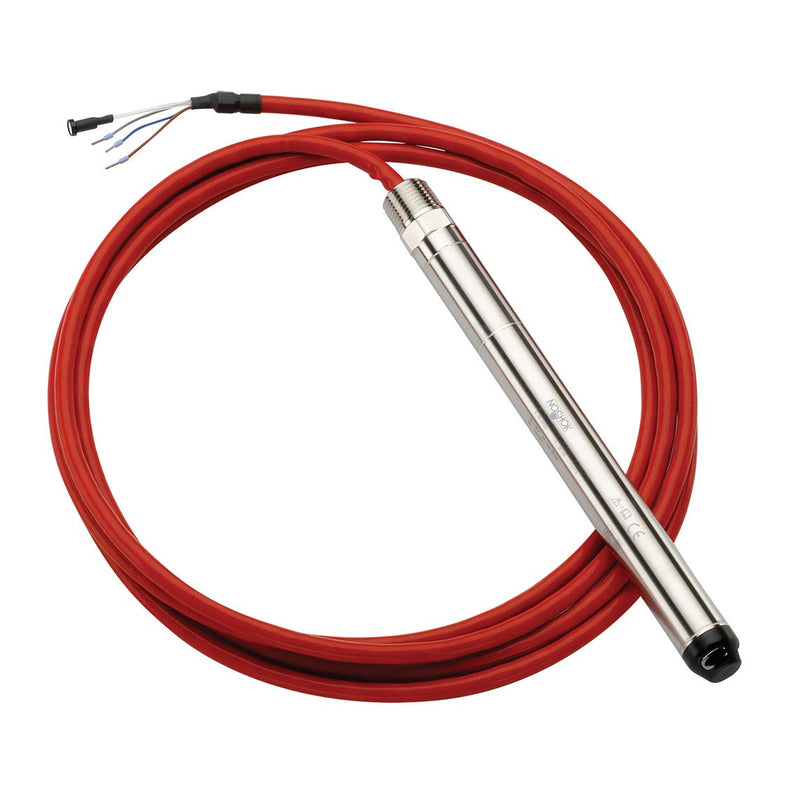

NOSHOK 611 Series Small Diameter Submersible Level Transmitters, 611-15-1-1-N-70-CBC-JB, 0 to 15 psig, ±1% of Span Accuracy, 4 to 20 mA Output with Cable Clamp, Nose Cone, 70 ft Polyurethane (PUR) Cable & Cable Junction Box (NEMA 4X)

Save 9%

NOSHOK Authorized Distributor

NOSHOK 611 Series Small Diameter Submersible Level Transmitters, 611-15-1-1-N-70-CBC-JB, 0 to 15 psig, ±1% of Span Accuracy, 4 to 20 mA Output with Cable Clamp, Nose Cone, 70 ft Polyurethane (PUR) Cable & Cable Junction Box (NEMA 4X)

Name: NOSHOK 611 Series Small Diameter Submersible Level Transmitters, 611-15-1-1-N-70-CBC-JB, 0 to 15 psig, ±1% of Span Accuracy, 4 to 20 mA Output with Cable Clamp, Nose Cone, 70 ft Polyurethane (PUR) Cable & Cable Junction Box (NEMA 4X)
Brand: NOSHOK
SKU: 611-15-1-1-N-70-CBC-JB

SKU: 611-15-1-1-N-70-CBC-JB

Made in the United States

$1,623.99 Was: $1,804.02 You Save $180.03

Available

Available Sizes

0 to 15 psig 0 to 25 psig

Size0 to 15 psig

Pressure Range10 to 15 psig

Process ConnectionsNose Cone

Storage Temperature [Min]-40 ºC

Typically ships in 3–5 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Buying for a facility?

Custom quote, volume pricing, or Net 30 terms available.

Request a Formal Quote or call 888-825-8800

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Type	Submersible Level Transmitter
Series	611
Full Scale Best Fit Straight Line (BFSL) Accuracy (±)	± 1.0% of span %
Note for Accuracy	Includes non-linearity, hysteresis, zero offset and end value deviation per IEC 61298-2
Output Signal	4 mA to 20 mA, 2-wire
Options	Cable Clamp, Cable Junction Box (NEMA 4X)
Style	Level Transmitter
Optional Accuracy	± 0.5 of span
Warranty	3 yr
Stability	≤ ± 0.1% of span per year
Switch on Time (Output signals without HART®)	≤ 150 ms
Switch on Time (Output Signals with HART®)	≤ 250 ms
Settling Time (Output Signals without HART®)	≤ 100 ms
Settling Time (Output Signals with HART®)	≤ 250 ms
Durability	< 100,000,000 full scale cycles
Power Requirement2	4mA to 20 mA: 8 Vdc to 36 Vdc
Load Limitations	4 mA to 20 mA: ≤ (Vpower - 8 V) / 0.022 A
Measuring Element	Cap: Polyvinylidene Fluoride (PVDF)
Electrical Protection	Reverse polarity protection, short circuit and resistance to overvoltage :DC 40V and increased overvoltage for lightning protection. Normal discharge current ≤ 10 kA, Rise time 8/20 µs
Vibration According to International Electrotechnical Commission (IEC) 60068-2-6	4 g
Cable Length	70 ft
Brand	NOSHOK
Manufacturer Part #	611-15-1-1-N-70-CBC-JB
Size	0 to 15 psig
Country of Origin	Made in the United States

Materials & Construction

Optional Housing Material	318 LN
Housing Material	316 Stainless Steel

Performance

Pressure Range1	0 to 15 psig
Storage Temperature [Min]	-40 ºC
Storage Temperature [Max]	80 ºC
Proof Pressure	5 Times Range
Environmental Rating	Ingress Protection (IP68)
Electromagnetic Rating	European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection

Connections

Process Connections	Nose Cone
Electrical Connection	Standard Polyurethane (PUR) Cable, Optional Water-Blocked Polyvinyl Chloride (PVC) Cable (200+ psi Only), Optional Fluorinated Ethylene Propylene (FEP) Cable (38)
Connection Material	316 Stainless Steel

Dimensions & Weight

Approximate Weight	10.6 oz
Submersion Depth [Max]	325 ft (100 m)
