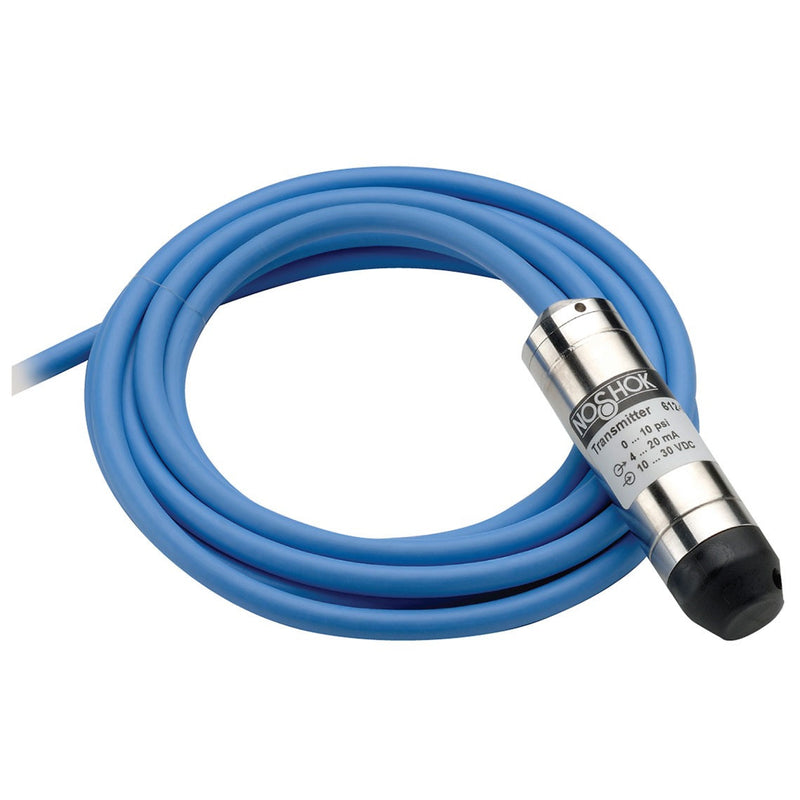

NOSHOK 612 Series Submersible Level Transmitters, 612-3-1-1-W-8, 0 to 3 psig, 0.25% Accuracy BFSL, 4 to 20 mA, Weighted Nose Cone, 8 ft Polyurethane (PUR) Cable

NOSHOK Authorized Distributor

NOSHOK 612 Series Submersible Level Transmitters, 612-3-1-1-W-8, 0 to 3 psig, 0.25% Accuracy BFSL, 4 to 20 mA, Weighted Nose Cone, 8 ft Polyurethane (PUR) Cable

Name: NOSHOK 612 Series Submersible Level Transmitters, 612-3-1-1-W-8, 0 to 3 psig, 0.25% Accuracy BFSL, 4 to 20 mA, Weighted Nose Cone, 8 ft Polyurethane (PUR) Cable
Brand: NOSHOK
SKU: 612-3-1-1-W-8

SKU: 612-3-1-1-W-8

Made in the United States

$1,032.99

Available

Available Models

612-100-1-1-T-15 612-300-1-1-T-15 612-100-1-1-T-25 612-100-1-1-T-75 ±0.25% 612-2-1-1-N-4-DC 612-2-1-1-N-20 612-2-1-1-N-25 612-2-1-1-N-30 ±0.25%, Weighted ±0.125% 612-100-1-1-N-50 612-300-1-1-N-375 612-300-1-1-N-650

Size0 to 3 psig

Pressure Range0 to 3 psig

Process ConnectionsNose Cone with added weight (1.1 lbs.)

Storage Temperature [Min]-30°C

Ships direct from the manufacturer — call 888-825-8800 for current lead time

Download Specification Sheet (PDF)

Buying for a facility?

Custom quote, volume pricing, or Net 30 terms available.

Request a Formal Quote or call 888-825-8800

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Type	Submersible Level Transmitter
Series	612
Full Scale Best Fit Straight Line (BFSL) Accuracy (±)	0.25 %
Note for Accuracy	Includes the effects of non-linearity, hysteresis, non-repeatability, zero point and full scale errors.
Output Signal	4 mA to 20 mA, 2-wire
Style	Level Transmitter
Stability	≤ ± 0.2% full scale for 1 year, non-accumulating
Response Time	≤1 ms
Service Life	< 100,000,000 load cycles
Power Requirement	10 Vdc to 30 Vdc (4 mA to 20 mA, 2-wire, 0 Vdc to 5 Vdc, 3-wire)
Load Limitations	≤ (VPower-10)/0.020 Amp for 4 mA to 20 mA
Measuring Element	Cap: Polyamide, 316 stainless steel with weighted Nose Cone
Electrical Protection	Reverse polarity protection, short circuit and optional lightning protection per European Standards (EN) 6100-4-5; 1.5J
Shock According to International Electrotechnical Commission (IEC) 60068-2-27	100 g
Vibration According to International Electrotechnical Commission (IEC) 60068-2-6	15 g
Warranty	3 yr
Cable Length	8 ft
Related Items	612-CABLE-CLAMP, Submersible Cable Clamp
Brand	NOSHOK
Manufacturer Part #	612-3-1-1-W-8
Size	0 to 3 psig
Country of Origin	Made in the United States

Materials & Construction

Housing Material	316 Stainless Steel

Performance

Pressure Range	0 to 3 psig
Storage Temperature [Min]	-30°C
Storage Temperature [Max]	80°C
Proof Pressure	2 Times Range
Burst Pressure	4 Times Range
Environmental Rating	Ingress Protection (IP68)
Electromagnetic Rating	European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection

Connections

Process Connections	Nose Cone with added weight (1.1 lbs.)
Electrical Connection	Standard Polyurethane (PUR) Cable
Connection Material	316 Stainless Steel

Dimensions & Weight

Approximate Weight	7 oz
