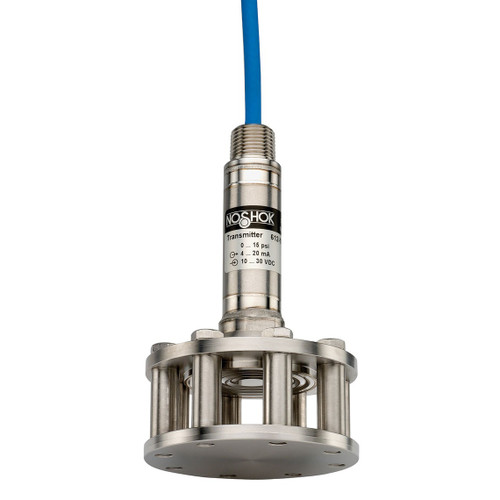

NOSHOK 613 Series Cage-Protected Submersible Level Transmitters 613-15-1-1-50, 0 to 15 psig, 0.25% Accuracy (BFSL), 4 to 20 mA, 50 ft Polyurethane (PUR) Cable
Brand : NOSHOK
Starting At:
$1,845.99
- Size Dropdown:
- True
613 Series Cage-Protected Submersible Level Transmitters
- Ranges from 0 psi to 5 psi through 0 psi to 300 psi
- Current & voltage outputs available
- 316 Stainless Steel and Polyurethane wetted parts
- CE compliant to suppress RFI, EMI and ESD
Technical Specifications
Type
Submersible Level Transmitter
Series
613
Pressure Range
0 to 15 psi
Full Scale Best Fit Straight Line (BFSL) Accuracy (±)
0.125 %
0.25 %
Note for Accuracy
Includes the effects of non-linearity, hysteresis, non-repeatability, zero point and full scale errors.
Output Signal
4 mA to 20 mA, 2-wire
Electrical Connection
50 feet Standard Polyurethane (PUR) Cable
Storage Temperature [Min]
-30 ºC
-22 ºF
Storage Temperature [Max]
80 ºC
175 ºF
Stability
≤ ± 0.2% full scale for 1 year, non-accumulating
Response Time
≤1 ms
Service Life
< 100,000,000 load cycles
Temperature Measurement
Optional PT100, 4-wire per International Electrotechnical Commission (IEC) 60751
Power Requirement
10 Vdc to 30 Vdc (4 mA to 20 mA, 2-wire, 0 Vdc to 5 Vdc, 3-wire)
5 Vdc to 30 Vdc (0.5 Vdc to 2.5 Vdc, 3-wire)
14 Vdc to 30 Vdc (0 Vdc to 10 Vdc, 3-wire)
Load Limitations
≤ (VPower-10)/0.020 Amp for 4 mA to 20 mA
≥ 10,000 Ω for 0 Vdc to 10 Vdc, 3-wire
≥ 5,000 Ω for 0 Vdc to 5 Vdc, 3-wire
Proof Pressure
2 Times Range
Burst Pressure
4 Times Range
Measuring Element
Cage seal: All 316 stainless steel
Cable: polyurethane, optional FEP
Connection Material
316 Stainless Steel
Housing Material
316 Stainless Steel
Environmental Rating
Ingress Protection (IP68)
Electromagnetic Rating
European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Electrical Protection
Reverse polarity protection, short circuit and optional lightning protection per European Standards (EN) 6100-4-5; 1.5J
Shock According to International Electrotechnical Commission (IEC) 60068-2-27
100 g
Vibration According to International Electrotechnical Commission (IEC) 60068-2-6
15 g
Weight1
3.2 lb
Compensated Temperature Range
32 to 122 ºF
0 to 50 ºC
Note for Compensated Temperature Range
Effect ± 0.01%/ºF for zero and span
Media Temperature Range
14 to 122 ºF
-10 to 50 ºC
Warranty
3 yr
Cable Length
50 ft
Related Items
612-CABLE-CLAMP, Submersible Cable Clamp
612-FILTER-ELEMENT, Submersible Filter Element
Prop 65 Warnings
- WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Limitations Which Apply Are
- These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.
In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Application
- Lift stations
- Sewage
- Slurry tanks
- Storm canals
- Water & wastewater
- Wet wells
Additional Information
- Ideal for applications including lift stations, sewage, slurry tanks, storm canals, water & wastewater and wet wells
Options and Accessories
- Cable Clamp (CBC)
- Cable Junction Box NEMA 4X (JB)
- Desiccant Cartridge (DC)
- Filter Element (FE)
- Lightning Protection (LP) (Only available with PUR cable)
- Lifting Ring (LR)
- PT100 RTD1 (PT1) (Only available with PUR cable)
