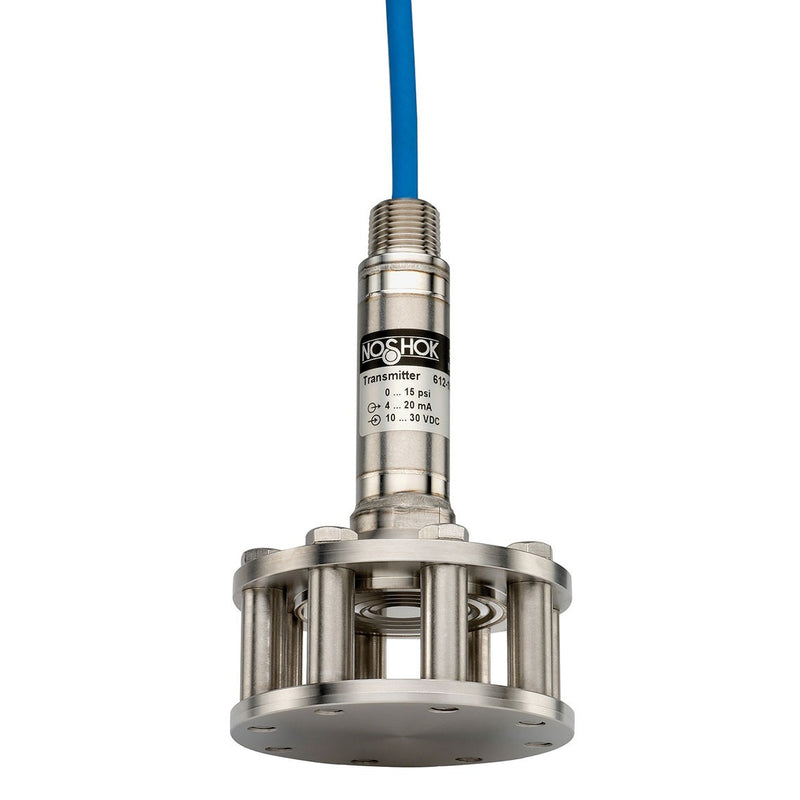

NOSHOK 613 Series Cage-Protected Submersible Level Transmitters, 0.25% Accuracy (BFSL), 4 to 20 mA

Save 9%

NOSHOK Authorized Distributor

NOSHOK 613 Series Cage-Protected Submersible Level Transmitters, 0.25% Accuracy (BFSL), 4 to 20 mA

Name: NOSHOK 613 Series Cage-Protected Submersible Level Transmitters, 0.25% Accuracy (BFSL), 4 to 20 mA
Brand: NOSHOK
SKU: NSK-611-LT-0-to-50-psig-BFSL

SKU: NSK-611-LT-0-to-50-psig-BFSL

Made in the United States

Starting at $1,519.99

Select a Model to Order This page shows the full series. Choose a specific model below to view pricing and add to cart.

Available Models

613-10-1-1-15 613-15-1-1-20 613-5-1-1-12-CBC-LR 613-5-1-1-25 613-10-1-1-30 613-10-1-1-40-LR 613-15-1-1-40-LR 613-10-1-1-50 613-15-1-1-50 613-5-1-1-50 613-10-1-1-50-FE 613-15-1-1-50-LR 613-5-1-1-50-LR 613-5-1-1-50-CBC-DC-LR 613-15-1-1-75 613-30-1-1-100 613-50-1-1-200-LR

Select a model above to add to cart.

Pressure Range0 to 5 psi

Electrical Connection12 feet Standard Polyurethane (PUR) Cable

Storage Temperature [Min]-30°C

Buying for a facility?

Custom quote, volume pricing, or Net 30 terms available.

Request a Formal Quote or call 888-825-8800

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Type	Submersible Level Transmitter
Series	613
Full Scale Best Fit Straight Line (BFSL) Accuracy (±)	0.125 %
Note for Accuracy	Includes the effects of non-linearity, hysteresis, non-repeatability, zero point and full scale errors.
Output Signal	4 mA to 20 mA, 2-wire
Stability	≤ ± 0.2% full scale for 1 year, non-accumulating
Response Time	≤1 ms
Service Life	< 100,000,000 load cycles
Power Requirement	10 Vdc to 30 Vdc (4 mA to 20 mA, 2-wire, 0 Vdc to 5 Vdc, 3-wire)
Load Limitations	≤ (VPower-10)/0.020 Amp for 4 mA to 20 mA
Measuring Element	Cage seal: All 316 stainless steel
Electrical Protection	Reverse polarity protection, short circuit and optional lightning protection per European Standards (EN) 6100-4-5; 1.5J
Shock According to International Electrotechnical Commission (IEC) 60068-2-27	100 g
Vibration According to International Electrotechnical Commission (IEC) 60068-2-6	15 g
Warranty	3 yr
Cable Length	12 ft
Options	Cable Clamp, Lifting Ring
Related Items	612-CABLE-CLAMP, Submersible Cable Clamp
Brand	NOSHOK
Manufacturer Part #	NSK-611-LT-0-to-50-psig-BFSL
Country of Origin	Made in the United States

Materials & Construction

Housing Material	316 Stainless Steel

Performance

Pressure Range	0 to 5 psi
Storage Temperature [Min]	-30°C
Storage Temperature [Max]	80°C
Temperature Measurement	Optional PT100, 4-wire per International Electrotechnical Commission (IEC) 60751
Proof Pressure	2 Times Range
Burst Pressure	4 Times Range
Environmental Rating	Ingress Protection (IP68)
Electromagnetic Rating	European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Compensated Temperature Range	32 to 122°F
Note for Compensated Temperature Range	Effect ± 0.01%/°F for zero and span
Media Temperature Range	14 to 122°F

Connections

Electrical Connection	12 feet Standard Polyurethane (PUR) Cable
Connection Material	316 Stainless Steel

Dimensions & Weight

Weight1	3.2 lb

Download Specification Sheet (PDF)

Overview

613 Series Cage-Protected Submersible Level Transmitters

Ranges from 0 psi to 5 psi through 0 psi to 300 psi
Current & voltage outputs available
316 Stainless Steel and Polyurethane wetted parts
CE compliant to suppress RFI, EMI and ESD
