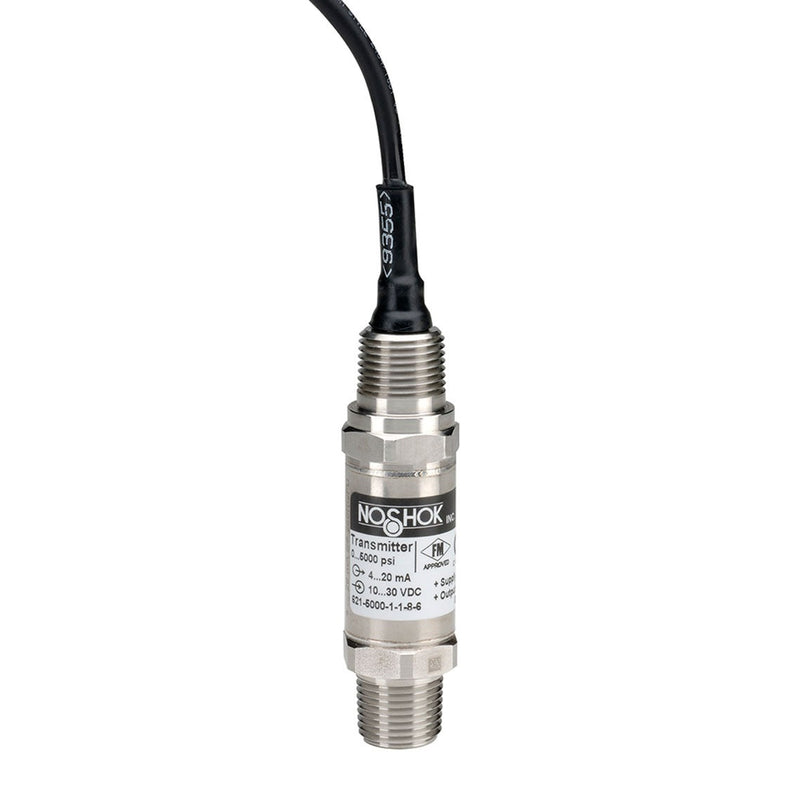

NOSHOK 621/622 Series Explosion-Proof Pressure Transmitters, 0 to 10 psig, 0.25% Accuracy (BFSL), 4 to 20 mA, NPT Male, 1/2" NPT Conduit (6 ft Cable Attached)
SKU:
NSK-621/622-PT-0-to-10-psig
Made in the United States
Starting at
$544.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Connection Size1/4 in
Pressure Range0 to 10 psig
Connection TypeMale National Pipe Thread (MNPT)
Storage Temperature [Min]-40 ºC
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Pressure Transmitter |
|---|---|
| Accuracy | 0.25 % |
| Output Signal | 4 mA to 20 mA, 2-wire |
| Series | Stainless Steel Threaded Connection |
| Stability | ≤ ±0.2% full scale for 1 year, non-accumulating |
| Response Time | ≤1 ms |
| Service Life | > 100,000,000 Load Cycles |
| Power Requirement | 10 Vdc to 30 Vdc (4 mA to 20 mA, 2-wire) |
| Measuring Element | 621 Series is 316 stainless steel for ranges up through 0 psi to 300 psi, 316 stainless steel with Elgiloy ranges 0 psig to 500 psig and higher |
| Electrical Protection | Reverse polarity, over-voltage and short circuit protected |
| Shock According to International Electrotechnical Commission (IEC) 60068-2-27 | 1,000 g |
| Vibration According to International Electrotechnical Commission (IEC) 60068-2-6 | 20 g |
| Brand | NOSHOK |
| Manufacturer Part # | NSK-621/622-PT-0-to-10-psig |
| Country of Origin | Made in the United States |
Materials & Construction
| Housing Material | 316 Stainless Steel |
|---|
Performance
| Storage Temperature [Min] | -40 ºC |
|---|---|
| Storage Temperature [Max] | 105 ºC |
| Pressure Range | 0 to 10 psig |
| Environmental Rating | Ingress Protection (IP67) |
| Absolute Pressure Range | 0 to 100 psia |
| Electromagnetic Rating | European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection |
Connections
| Connection Type | Male National Pipe Thread (MNPT) |
|---|---|
| Connection Size | 1/4 in |
| Electrical Connection | 1/2 in. NPT male conduit with 6 ft integral cable |
| Connection Material | 316 Stainless Steel |
Dimensions & Weight
| Weight | 12 oz |
|---|
Overview
621/622 Series - Explosion-Proof Pressure Transmitters
- Current and voltage outputs available
- 316 stainless Steel and Elgiloy wetted parts
- Factory Mutual and Canadian Standards Association approved
- CE compliant to suppress RFI, EMI and ESD
- NACE MR0175/ISO 15156 compliant
- NSI/ISA-12.27.01 approved single seal
