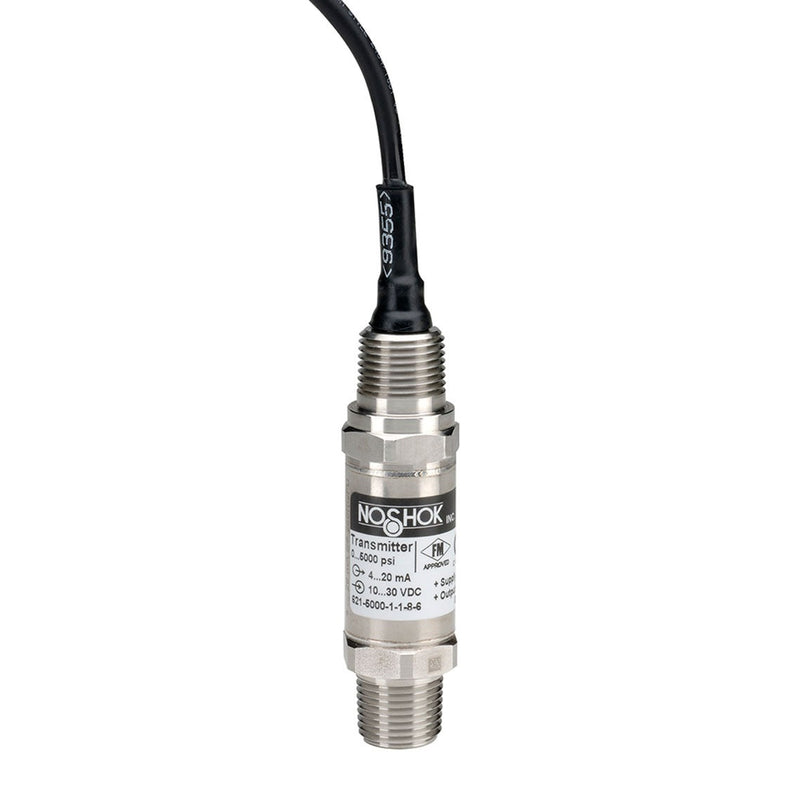

NOSHOK 621/622 Series Explosion-Proof Pressure Transmitters, 621-30/100-1-1-11-6, -30 inHg to 100 psig, 0.25% Accuracy (BFSL), 4 to 20 mA, G1/2B Male, 1/2

Save 9%

NOSHOK Authorized Distributor

NOSHOK 621/622 Series Explosion-Proof Pressure Transmitters, 621-30/100-1-1-11-6, -30 inHg to 100 psig, 0.25% Accuracy (BFSL), 4 to 20 mA, G1/2B Male, 1/2" NPT Conduit (6 ft Cable Attached)

Name: NOSHOK 621/622 Series Explosion-Proof Pressure Transmitters, 621-30/100-1-1-11-6, -30 inHg to 100 psig, 0.25% Accuracy (BFSL), 4 to 20 mA, G1/2B Male, 1/2" NPT Conduit (6 ft Cable Attached)
Brand: NOSHOK
SKU: 621-30/100-1-1-11-6

SKU: 621-30/100-1-1-11-6

Made in the United States

$580.99 Was: $645.33 You Save $64.34

Available

Available Sizes

1/4" 1/4" 1/2" 1/2" 1/2"

Connection SizeG1/2B

Pressure Range-30 inHg to 100 psig

Electrical Connection1/2 in. NPT male conduit with 6 ft integral cable

Storage Temperature [Min]-40 ºC

Typically ships in 3–5 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Type	Pressure Transmitter
Accuracy	0.25 %
Output Signal	4 mA to 20 mA, 2-wire
Series	Stainless Steel Threaded Connection
Stability	≤ ±0.2% full scale for 1 year, non-accumulating
Response Time	≤1 ms
Service Life	> 100,000,000 Load Cycles
Power Requirement	10 Vdc to 30 Vdc (4 mA to 20 mA, 2-wire)
Measuring Element	621 Series is 316 stainless steel for ranges up through 0 psi to 300 psi, 316 stainless steel with Elgiloy ranges 0 psig to 500 psig and higher
Electrical Protection	Reverse polarity, over-voltage and short circuit protected
Shock According to International Electrotechnical Commission (IEC) 60068-2-27	1,000 g
Vibration According to International Electrotechnical Commission (IEC) 60068-2-6	20 g
Brand	NOSHOK
Manufacturer Part #	621-30/100-1-1-11-6
Size	1/2"
Country of Origin	Made in the United States

Materials & Construction

Housing Material	316 Stainless Steel

Performance

Storage Temperature [Min]	-40 ºC
Storage Temperature [Max]	105 ºC
Pressure Range	-30 inHg to 100 psig
Environmental Rating	Ingress Protection (IP67)
Absolute Pressure Range	0 to 100 psia
Electromagnetic Rating	European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection

Connections

Connection Size	G1/2B
Electrical Connection	1/2 in. NPT male conduit with 6 ft integral cable
Connection Material	316 Stainless Steel

Dimensions & Weight

Weight	12 oz
