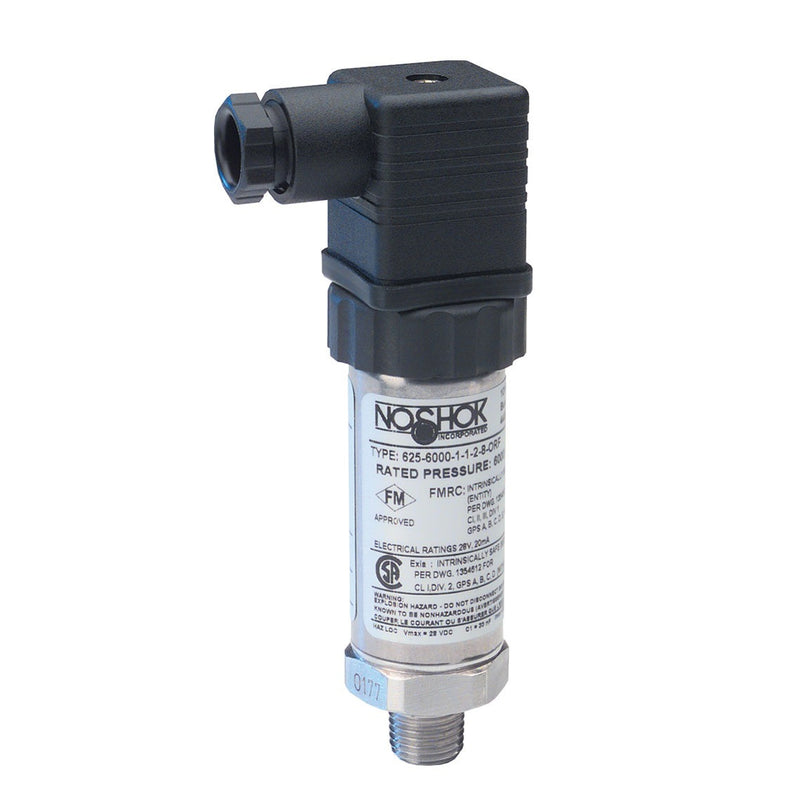

NOSHOK 625/626 Series Intrinsically Safe Pressure Transmitters, 625-30vac-1-1-8-25, -30 inHg to 0 psig, 0.25% Accuracy BFSL, 4 to 20 mA Output, 1/2" NPT Male, M12 x 1 (4 Pin)

Name: NOSHOK 625/626 Series Intrinsically Safe Pressure Transmitters, 625-30vac-1-1-8-25, -30 inHg to 0 psig, 0.25% Accuracy BFSL, 4 to 20 mA Output, 1/2" NPT Male, M12 x 1 (4 Pin)
Brand: NOSHOK
SKU: 625-30vac-1-1-8-25

SKU: 625-30vac-1-1-8-25

Made in the United States

$790.99 Was: $878.76 You Save $87.77

Available

Available Sizes

1/4" 1/4" 1/2" 1/2"

Size1/2"

Pressure Range-30 inHg to 0 psig

Process Connections1/2 in. Male National Pipe Thread (MNPT)

Storage Temperature [Min]-30 ºC

Typically ships in 3–5 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Type	Safe Pressure Transmitter
Series	Stainless Steel Threaded Connection
Full Scale Best Fit Straight Line (BFSL) Accuracy (±)	0.25 %
Note for Accuracy	Includes the effects of non-linearity, hysteresis, non-repeatability, zero point and full scale errors.
Output Signal	4 mA to 20 mA, 2-wire
Stability	≤ ± 0.2% full scale for 1 year, non-accumulating
Adjustment	± 10% full scale for zero and span
Response Time	≤1 ms
Service Life	< 100,000,000 load cycles
Power Requirement	10 Vdc to 30 Vdc (4 mA to 20 mA, 2-wire)
Load Limitations	≤ (VPower-10)/0.020 Amp
Measuring Element	316 stainless steel for ranges up through 0 psi to 300 psi, 316 stainless steel with 17-4PH stainless steel for ≥300 psi
Electrical Protection	Reverse polarity, over-voltage and short circuit protected
Shock According to International Electrotechnical Commission (IEC) 60068-2-27	1,000 g
Vibration According to International Electrotechnical Commission (IEC) 60068-2-6	20 g
Warranty	3 yr
Brand	NOSHOK
Manufacturer Part #	625-30vac-1-1-8-25
Size	1/2"
Country of Origin	Made in the United States

Materials & Construction

Housing Material	316 Stainless Steel

Performance

Pressure Range	-30 inHg to 0 psig
Storage Temperature [Min]	-30 ºC
Storage Temperature [Max]	105 ºC
Proof Pressure	3.5 Times Full Scale
Burst Pressure	4 Times Full Scale
Environmental Rating	Ingress Protection (IP65) to Ingress Protection (IP67) depending upon electrical connection
Compensated Temperature Range	32 to 176 ºF
Note for Compensated Temperature Range	Zero effect is ±0.011% full scale/ºF
Media Temperature Range	-4 to 185 ºF
Ambient Temperature Range	-4 to 176 ºF

Connections

Process Connections	1/2 in. Male National Pipe Thread (MNPT)
Electrical Connection	M12 x 1 (4-Pin) Ingress Protection (IP67)
Connection Material	316 Stainless Steel

Dimensions & Weight

Approximate Weight	7 oz
