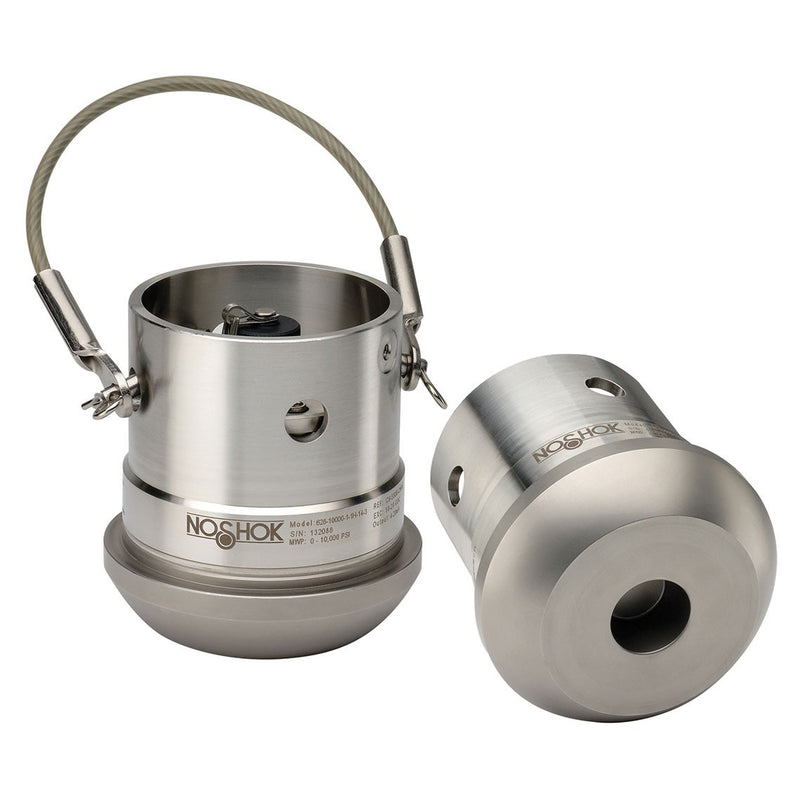

NOSHOK 628 Series Intrinsically Safe Hammer Union Pressure Transmitter 628-10000-1-1H-14-3, 0 to 10,000 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output Pressure Transmitter with 2" Wing Union and 6-Pin Bayonet
SKU:
628-10000-1-1H-14-3
Made in the United States
$2,338.99
Price on request
Was: $2,598.71
You Save $259.72
Available
Size2"
Pressure Range0 to 10,000 psig
Process Connections2" Wing union (#1502)
Storage Temperature [Min]-40 ºC-40 ºF
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Safe Hammer Union Pressure Transmitter |
|---|---|
| Series | 628 |
| Full Scale Best Fit Straight Line (BFSL) Accuracy (±) | 0.25 % |
| Note for Accuracy | Includes the effects of non-linearity, hysteresis, non-repeatability, zero point and full scale errors. |
| Output Signal | 4 mA to 20 mA, 2-wire |
| Stability | ≤ ±0.2% full scale for 1 year, non-accumulating |
| Response Time | < 2 ms |
| Service Life | < 10,000,000 load cycles |
| Power Requirement | 10 Vdc to 28 Vdc |
| Load Limitations | ≤ (VPower-10)/0.020 Amp |
| Measuring Element | Inconel X-750 |
| Electrical Protection | Reverse polarity, over-voltage and short circuit protected |
| Shock According to International Electrotechnical Commission (IEC) 60068-2-27 | 100 g |
| Vibration According to International Electrotechnical Commission (IEC) 60068-2-6 | 15 g |
| Warranty | 3 yr |
| Note | H is the standard wiring code. |
| Brand | NOSHOK |
| Manufacturer Part # | 628-10000-1-1H-14-3 |
| Size | 2" |
| Country of Origin | Made in the United States |
Materials & Construction
| Housing Material | 316 Stainless Steel |
|---|
Performance
| Pressure Range | 0 to 10,000 psig |
|---|---|
| Storage Temperature [Min] | -40 ºC-40 ºF |
| Storage Temperature [Max] | -85 ºC185 ºF |
| Proof Pressure Range at 1.5 Times Full Scale [Max] | 22,500 psi |
| Burst Pressure at 3 Times Full Scale [Max] | 22,500 psi |
| Environmental Rating | Ingress Protection (IP67) depending upon electrical connection |
| Electromagnetic Rating | European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection |
Connections
| Process Connections | 2" Wing union (#1502) |
|---|---|
| Electrical Connection | 6-Pin Bayonet (MIL-C-26482) |
| Connection Material | Inconel X-750 |
Dimensions & Weight
| Weight | 6 lb |
|---|
Overview
628 Series - Intrinsically Safe Hammer Union Pressure Transmitters
- Ranges from 0 psig to 5,000 psig through 0 psig to 20,000 psig
- Current output
- Inconel X-750 wetted parts
