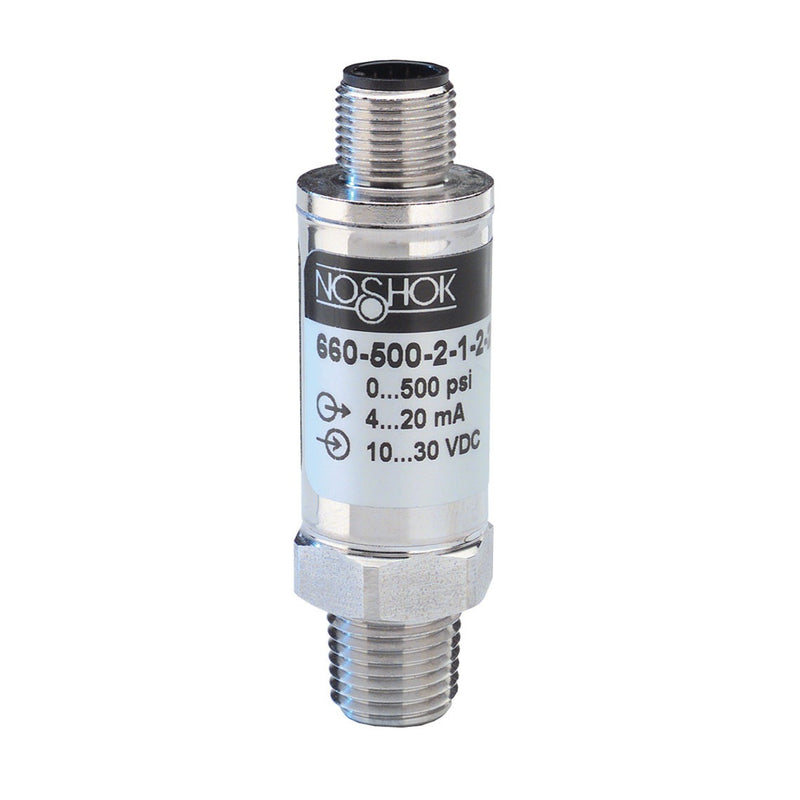

NOSHOK 660 Series High Performance Micro-Size Transducers 660-500-1-1-2-25, 0 to 500 psig, Micro-Size Transducer, M12 x 1 (4 Pin)

NOSHOK Authorized Distributor

NOSHOK 660 Series High Performance Micro-Size Transducers 660-500-1-1-2-25, 0 to 500 psig, Micro-Size Transducer, M12 x 1 (4 Pin)

Name: NOSHOK 660 Series High Performance Micro-Size Transducers 660-500-1-1-2-25, 0 to 500 psig, Micro-Size Transducer, M12 x 1 (4 Pin)
Brand: NOSHOK
SKU: 660-500-1-1-2-25

SKU: 660-500-1-1-2-25

Made in the United States

$413.99

Available to Order

Available Models

0 to 3,000 psig, M12 x 1 (4 Pin) 0 to 500 psig, M12 x 1 (4 Pin) 660-5000-1-1-2-7

Size1/4"

Pressure Range0 to 500 psig

Process Connections1/4 in. NPT Male

Typically ships in 3–5 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Type	Micro-Size Transducer
Series	660
Storage Temp [Min]	-40°C / -40°F
Storage Temp [Max]	100°C / 212°F
Output Signal	4 mA to 20 mA, 2-Wire
Power Requirement	10–36 Vdc (4–20 mA)8–36 Vdc (1–5 Vdc)14–36 Vdc (0.1–10 Vdc)
Accuracy (BFSL)	±0.25%
Stability	≤±0.2% FS/year
Service Life	> 100,000,000 Load Cycles
Compensated Temp Range	-20 to 85°C / -4 to 185°F
Compensation Effects	Zero ±0.01% FS/°FSpan ±0.01% FS/°F
Media Temp Range	-40 to 125°C / -40 to 257°F-13 to 85°F
Ambient Temp Range	-25 to 85°C / -4 to 185°F
Load Limitations	≤(VPower–10)/0.020 A≥10,000 Ω (0–10 Vdc)≥5,000 Ω (0–5 Vdc)
Measuring Element	17-4PH Stainless Steel
Electrical Protection	Reverse polarity, over-voltage, short circuit
Shock (IEC 60068-2-27)	1,000 g
Vibration (IEC 60068-2-6)	20 g
Warranty	3 yr
Brand	NOSHOK
Manufacturer Part #	660-500-1-1-2-25
Size	1/4"
Country of Origin	Made in the United States

Materials & Construction

Housing Material	316 Stainless Steel

Performance

Electromagnetic Rating	CE Compliant to EMC Norm EN 61326:2014/A1:1998, RFI, EMI, ESD Protection
Pressure Range	0 to 500 psig
Proof Pressure	2× Full Scale
Burst Pressure	9× Full Scale
Environmental Rating	IP65 / IP67 (M12x1 for 1500+ psig)

Connections

Process Connections	1/4 in. NPT Male
Electrical Connection	M12 x 1 (4-pin)
Connection Material	316 Stainless Steel

Dimensions & Weight

Weight	1.75 oz

Standards & Certifications

1.0 mm
