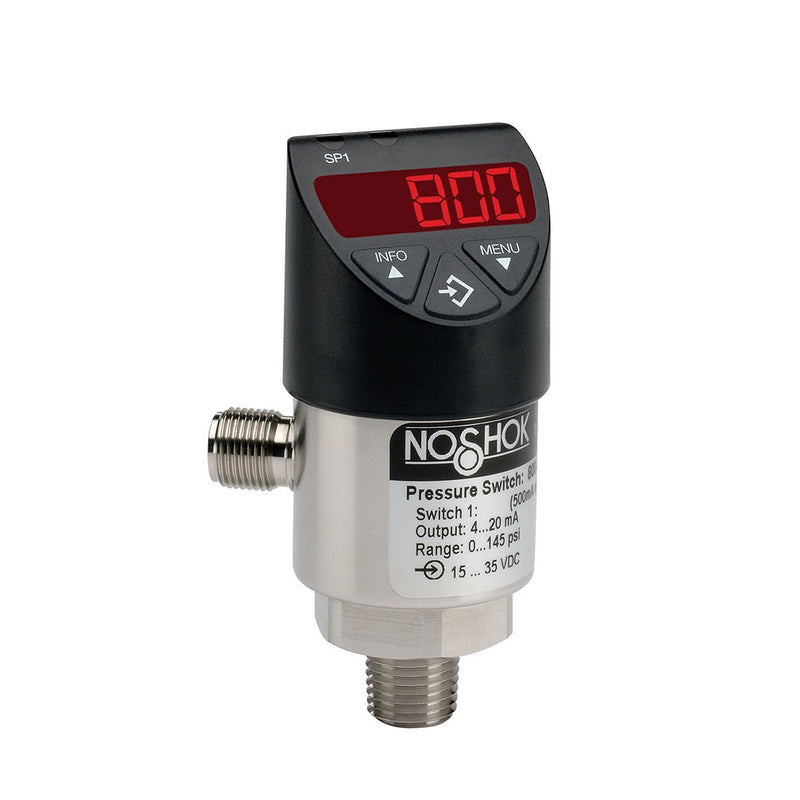

NOSHOK 800 Series Electronic Indicating Pressure Transmitters/Switches, 2 Normally Open (NO) or Normally Closed (NC) (PNP or NPN), 4 to 20 mA, 0 to 7,500 psig, M12 x 1 (4 Pin)

NOSHOK Authorized Distributor

NOSHOK 800 Series Electronic Indicating Pressure Transmitters/Switches, 2 Normally Open (NO) or Normally Closed (NC) (PNP or NPN), 4 to 20 mA, 0 to 7,500 psig, M12 x 1 (4 Pin)

Name: NOSHOK 800 Series Electronic Indicating Pressure Transmitters/Switches, 2 Normally Open (NO) or Normally Closed (NC) (PNP or NPN), 4 to 20 mA, 0 to 7,500 psig, M12 x 1 (4 Pin)
Brand: NOSHOK
SKU: NSK-800-T/S-2-NO/NC-0-to-7500-psig

SKU: NSK-800-T/S-2-NO/NC-0-to-7500-psig

Made in the United States

Starting at $593.99

Select a Model to Order This page shows the full series. Choose a specific model below to view pricing and add to cart.

Available Models

800-1-2-3000-2-ST8 800-1-2-3000-2 800-1-2-160-2 800-1-2-10-2 800-1-2-1000-2 800-2-2-30-2 800-2-2-300-2 800-2-2-145-2 800-2-2-14.5/160-2 800-4-2-7500-3

Select a model above to add to cart.

Process Connection Size1/4 in

Proof Pressure2 Times Full Scale

Process ConnectionMale National Pipe Thread (MNPT)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Type	Electronic Indicating Pressure Switch
Series	800
Switching Function	2 Normally Open (N.O.) or 2 Normally Closed (N.C.) (Positive-Negative-Positive (P-N-P) or Negative-Positive-Negative (N-P-N))
Switch Adjustable Range	0 to 1,000 psig
Accuracy	≤ 0.5% of span
Service Life	10,000,000 load cycles
Display	14 segment-LED, red 4-digit, height 0.35"
Direct Current (DC) Voltage	15 to 35 V
Current Consumption	Max. 45 mA for versions without 4-20 mA output signal
Measuring Element	<150 psi: 316L Stainless steel
Degree of Protection	Ingress Protection (IP65) and Ingress Protection (IP67) per International Electrotechnical Commission (IEC) 60529
Electrical Protection	Protected against reverse polarity, over-voltage and short circuit
Shock According to International Electrotechnical Commission (IEC) 60068-2-27	< 50 g
Vibration According to International Electrotechnical Commission (IEC) 60068-2-6	< 20 g
Brand	NOSHOK
Manufacturer Part #	NSK-800-T/S-2-NO/NC-0-to-7500-psig
Country of Origin	Made in the United States

Materials & Construction

Housing Material	304 Stainless Steel

Performance

Proof Pressure	2 Times Full Scale

Connections

Process Connection Size	1/4 in
Process Connection	Male National Pipe Thread (MNPT)
Electrical Connection	M12 x 1 (4-pin)
Connection Material	316 Stainless Steel

Dimensions & Weight

Weight	0.49 lb

Standards & Certifications

Radio Frequency Interference (RFI)Electromagnetic Interference (EMI)Electrostatic Discharge (ESD) Protection

Download Specification Sheet (PDF)

Overview

800 Series - Electronic Indicating Pressure Transmitters/Switches

Compound and standard ranges from 0 psig to 10 psig through 0 psig to 7,500 psig
316L Stainless Steel wetted parts
Current and voltage outputs available
