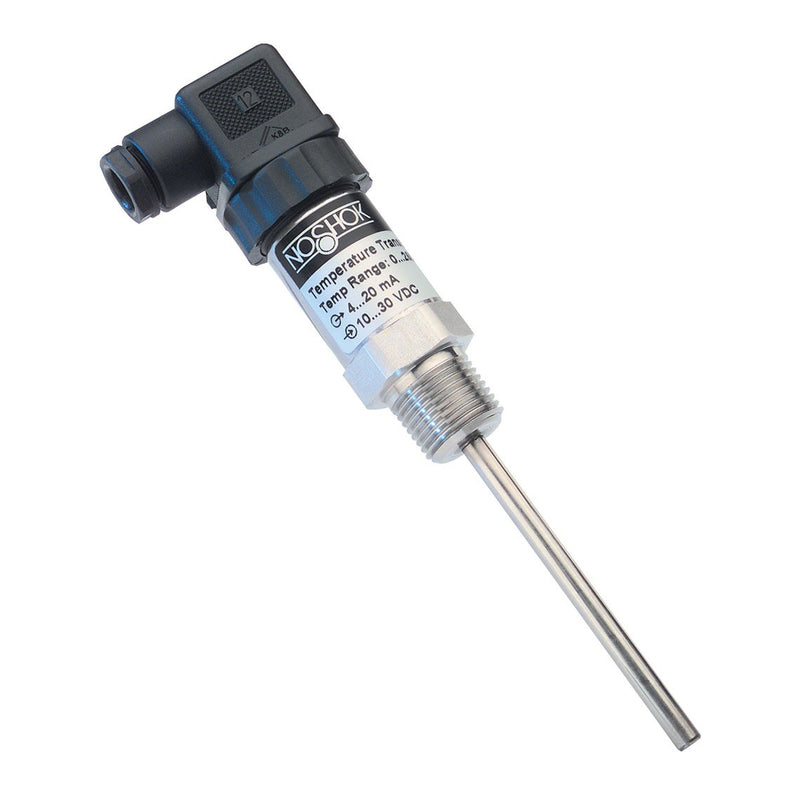

NOSHOK 800 Series Platinum Resistance Temperature Transmitters, 800-0/250-1-5-2-8-040-6, 0/250 ˚F, 0 to 10 Vdc, 1/4" NPT Process Connection, 4" Stem, 6mm Diameter, DIN EN 175301-803 Form A

Name: NOSHOK 800 Series Platinum Resistance Temperature Transmitters, 800-0/250-1-5-2-8-040-6, 0/250 ˚F, 0 to 10 Vdc, 1/4" NPT Process Connection, 4" Stem, 6mm Diameter, DIN EN 175301-803 Form A
Brand: NOSHOK
SKU: 800-0/250-1-5-2-8-040-6

SKU: 800-0/250-1-5-2-8-040-6

Made in the United States

$312.99 Was: $347.22 You Save $34.23

Available

Available Sizes

1/4" 1/4" 1/4" 1/4" 1/4" 1/4" 1/4" 1/4" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2"

Connection Size1/4 in

Pressure Rating725 psi

Connection TypeMale National Pipe Thread (MNPT)

Temperature Ranges [Min]0 ºF

Typically ships in 3–5 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Type	Transmitter
Series	800
Output Signal	0 to 10 Vdc, 3-Wire
Power Supply	10 to 30 Vdc (4 to 20 mA, 2-Wire)
Accuracy	Class B + (±0.5 % Best Fit Straight Line (BFSL))
Sensor Protection	Burnout Protected from 3.3 to 23 mA
Measuring Element	Class B per Norm European Standards (EN) 60751 (International Electrotechnical Commission (IEC 751))
Output	±[0.30 + 0.005 ltl] ºC
Load Limitations	≤(VPower - 10)/0.020 Amp for 4 to 20 mA output
Environmental Protection	Ingress Protection (IP65) According to Norm European Standards (EN) 60529/(International Electrotechnical Commission (IEC 529))
Electrical Protection	Reverse polarity, over-voltage and short circuit protection
Warranty	3 yr
Brand	NOSHOK
Manufacturer Part #	800-0/250-1-5-2-8-040-6
Size	1/4"
Country of Origin	Made in the United States

Materials & Construction

Wetted Materials	316 Stainless Steel
Housing Material	316 Stainless Steel
Stem Diameters	6 mm
Stem Lengths	4 in

Performance

Electromagnetic Rating	European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:1997/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Temperature Ranges [Min]	0 ºF
Temperature Ranges [Max]	250 ºF
Storage Temperature [Max]	85 ºC
Storage Temperature [Min]	-40 ºC
Pressure Rating	725 psi
Ambient Temperature Range	-40 to 185 ºF-40 to 85 ºC

Connections

Connection Type	Male National Pipe Thread (MNPT)
Connection Size	1/4 in
Electrical Connection	DIN EN 175301-803 Form A

Dimensions & Weight

Approximate Weight	4 oz

Standards & Certifications

-40 to 120 ºF
