Save 9%

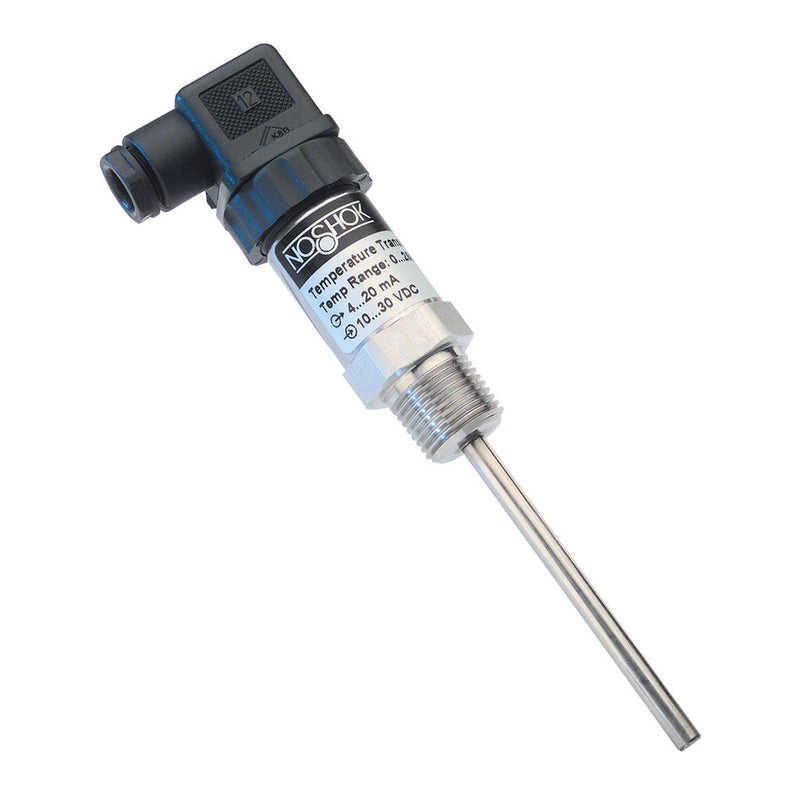

NOSHOK 800 Series Platinum Resistance Temperature Transmitters, 800-25/125-1-1-8-8-060-6, 25/125 ˚F, 4 to 20 mA Output, 1/2" NPT Process Connection, 6" Stem, 6mm Diameter, DIN EN 175301-803 Form A
SKU:
800-25/125-1-1-8-8-060-6
Made in the United States
$306.99
Price on request
Was: $340.68
You Save $33.69
Available
Connection Size1/2 in
Pressure Rating725 psi
Connection TypeMale National Pipe Thread (MNPT)
Temperature Ranges [Min]25 ºF
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Transmitter |
|---|---|
| Series | 800 |
| Output Signal | 4 to 20 mA, 2-Wire |
| Power Supply | 10 to 30 Vdc (4 to 20 mA, 2-Wire) |
| Accuracy | Class B + (±0.5 % Best Fit Straight Line (BFSL)) |
| Sensor Protection | Burnout Protected from 3.3 to 23 mA |
| Measuring Element | Class B per Norm European Standards (EN) 60751 (International Electrotechnical Commission (IEC 751)) |
| Output | ±[0.30 + 0.005 ltl] ºC |
| Load Limitations | ≤(VPower - 10)/0.020 Amp for 4 to 20 mA output |
| Environmental Protection | Ingress Protection (IP65) According to Norm European Standards (EN) 60529/(International Electrotechnical Commission (IEC 529)) |
| Electrical Protection | Reverse polarity, over-voltage and short circuit protection |
| Warranty | 3 yr |
| Brand | NOSHOK |
| Manufacturer Part # | 800-25/125-1-1-8-8-060-6 |
| Size | 1/2" |
| Country of Origin | Made in the United States |
Materials & Construction
| Wetted Materials | 316 Stainless Steel |
|---|---|
| Housing Material | 316 Stainless Steel |
| Stem Diameters | 6 mm |
| Stem Lengths | 6 in |
Performance
| Electromagnetic Rating | European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:1997/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection |
|---|---|
| Temperature Ranges [Min] | 25 ºF |
| Temperature Ranges [Max] | 125 ºF |
| Storage Temperature [Max] | 85 ºC |
| Storage Temperature [Min] | -40 ºC |
| Pressure Rating | 725 psi |
| Ambient Temperature Range | -40 to 185 ºF-40 to 85 ºC |
Connections
| Connection Type | Male National Pipe Thread (MNPT) |
|---|---|
| Connection Size | 1/2 in |
| Electrical Connection | DIN EN 175301-803 Form A |
Dimensions & Weight
| Approximate Weight | 4 oz |
|---|
Standards & Certifications
-40 to 120 ºF
Overview
800 Series - Platinum Resistance Temperature Transmitters
- Proven 100 Ω platinum resistance sensor provides reliability, stability & unbeatable performance
- Economical price
- Wide variety of temperature ranges and connections
