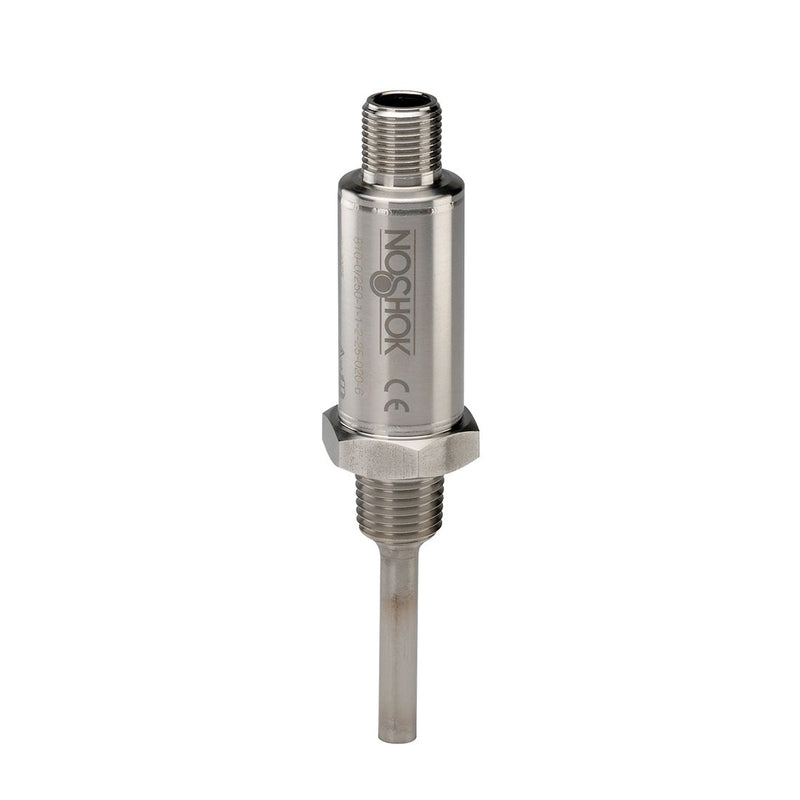

NOSHOK 810 Series Compact Temperature Transmitters, -22/250°F Temperature Range, 4-20 mA Output, NPT Process Connection, M12 x 1 (4-Pin), 6mm Diameter, 1/4 NPT Process Connection

SKU: NSK-810-TT-22/250-F
Made in the United States
Starting at $265.99

Select a Model to Order This page shows the full series. Choose a specific model below to view pricing and add to cart.

Available Models
810--22/250-1-1-2-25-010-6 810--22/250-1-1-2-25-020-6 810--22/250-1-1-2-25-025-6 810--22/250-1-1-2-25-030-6 810--22/250-1-1-2-25-040-6 810--22/250-1-1-2-25-060-6 810--22/250-1-1-2-25-080-6 810--22/250-1-1-2-25-120-6 810--22/250-1-1-2-25-140-6
Please select a model to order.

Select a model above to add to cart.

Connection Size1/4 in
Pressure Rating3,915 psi
Connection TypeMale National Pipe Thread (MNPT)
Low Calibrated Temperature Range-22°F
Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
30-Day Returns · see policy
Expert Support: 888-825-8800

Technical Specifications

General

TypeTransmitter
Output Signal4 to 20 mA, 2-Wire
Power Supply10 to 30 Vdc
Accuracy±0.80°F (± 0.45°C)
Series810
Sensor ProtectionBurnout Protected from 3.3 to 23 mA
Measuring ElementPT1000 Class A
Load Limitations≤(Supply Voltage - 10 Volts)/0.023 A
Environmental ProtectionIngress Protection (IP67)
Electrical ProtectionReverse polarity, over-voltage and short circuit protection
Warranty3 yr
Measuring Element AccuracyPT1000 Class A
Sensor Diameter6 mm
Sensor Length1 in
BrandNOSHOK
Manufacturer Part #NSK-810-TT-22/250-F
Country of OriginMade in the United States

Materials & Construction

Seal Material316 Stainless Steel
Housing Material316 Stainless Steel

Performance

Low Calibrated Temperature Range-22°F
High Calibrated Temperature Range250°F
Storage Temperature [Max]85°C
Storage Temperature [Min]-40°C
Pressure Rating3,915 psi
Ambient Temperature Range-40 to 185°F
Temperature Sensor AccuracyFor °F: ±[1.8*(0.15 + 0.002 (t - 32) / 1.8)]

Connections

Connection TypeMale National Pipe Thread (MNPT)
Connection Size1/4 in
Electrical ConnectionM12 x 1 (4-pin)

Standards & Certifications

-22 to 302°F
Download Specification Sheet (PDF)

Overview

810 Series - Compact Temperature Transmitters

  • Proven PT1000 platinum resistance sensor provides reliability, stability and unbeatable performance
  • Standard temperature ranges from -22°F to 302°F (-30°C to 150°C)
  • 4 mA to 20 mA transmitter included
