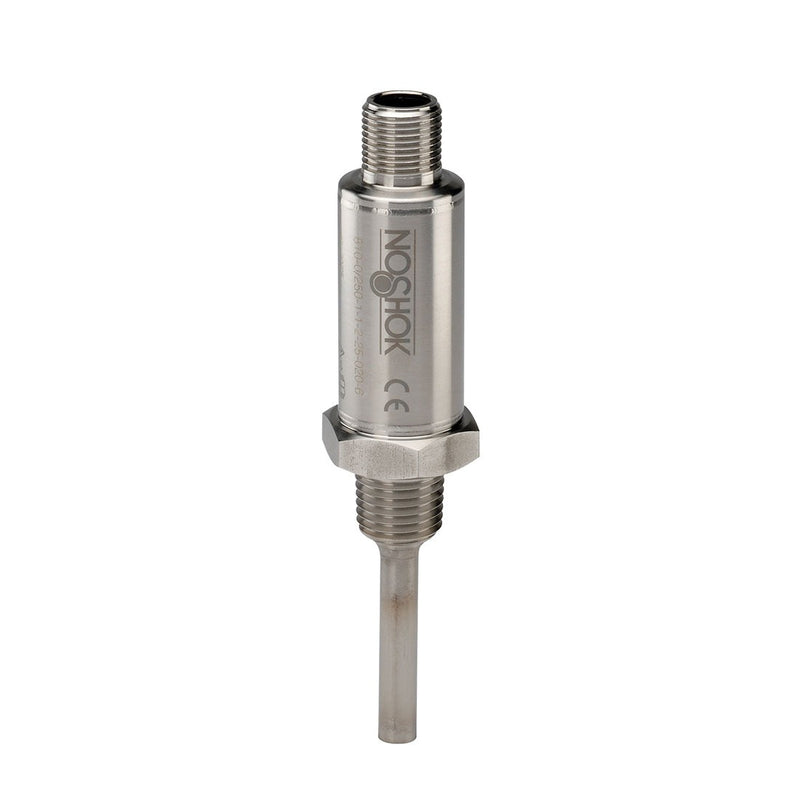

NOSHOK 810 Series Compact Temperature Transmitters, 810--22/302-1-1-2-25-140-6, -22/302°F, 4-20 mA, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 14.0" Stem, 6mm Diameter
SKU:
810--22/302-1-1-2-25-140-6
Made in the United States
$265.99
Price on request
Out of Stock
Available Models
Connection Size1/4 in
Pressure Rating3,915 psi
Connection TypeMale National Pipe Thread (MNPT)
Low Calibrated Temperature Range-22°F
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Transmitter |
|---|---|
| Output Signal | 4 to 20 mA, 2-Wire |
| Power Supply | 10 to 30 Vdc |
| Accuracy | ±0.80°F (± 0.45°C) |
| Series | 810 |
| Sensor Protection | Burnout Protected from 3.3 to 23 mA |
| Measuring Element | PT1000 Class A |
| Load Limitations | ≤(Supply Voltage - 10 Volts)/0.023 A |
| Environmental Protection | Ingress Protection (IP67) |
| Electrical Protection | Reverse polarity, over-voltage and short circuit protection |
| Warranty | 3 yr |
| Measuring Element Accuracy | PT1000 Class A |
| Sensor Diameter | 6 mm |
| Sensor Length | 14 in |
| Brand | NOSHOK |
| Manufacturer Part # | 810--22/302-1-1-2-25-140-6 |
| Size | 1/4" |
| Country of Origin | Made in the United States |
Materials & Construction
| Seal Material | 316 Stainless Steel |
|---|---|
| Housing Material | 316 Stainless Steel |
Performance
| Low Calibrated Temperature Range | -22°F |
|---|---|
| High Calibrated Temperature Range | 302°F |
| Storage Temperature [Max] | 85°C |
| Storage Temperature [Min] | -40°C |
| Pressure Rating | 3,915 psi |
| Ambient Temperature Range | -40 to 185°F |
| Temperature Sensor Accuracy | For °F: ±[1.8*(0.15 + 0.002 (t - 32) / 1.8)] |
Connections
| Connection Type | Male National Pipe Thread (MNPT) |
|---|---|
| Connection Size | 1/4 in |
| Electrical Connection | M12 x 1 (4-pin) |
Standards & Certifications
-22 to 302°F
Overview
810 Series - Compact Temperature Transmitters
- Proven PT1000 platinum resistance sensor provides reliability, stability and unbeatable performance
- Standard temperature ranges from -22°F to 302°F (-30°C to 150°C)
- 4 mA to 20 mA transmitter included
