Save 35%
NOSHOK 900 Series Industrial Resistance Temperature Device (RTD) Probes
SKU:
NOSHOK 900 Series
Made in the United States
$103.99
Price on request
Was: $160.54
You Save $56.55
Out of Stock
Connection Size1/2 in
Pressure Ratings for Tube500 psi
Connection TypeMale National Pipe Thread (MNPT) with sliding compression fitting - Add 2" to stem length for this option. If installing with thermowells, Process Connection option 48 or 61 must be selected
Temperature Ranges [Min]-330 ºF
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Probe |
|---|---|
| Series | 900 |
| Accuracy | ±0.12% (±0.3 ºC) at 0 ºC, Class B |
| Circuit Types | Single, 2-Wire |
| Lead Wires | Stranded 22 AWG standard, Polyvinyl Chloride (PVC) or Polytetrafluoroethylene (PTFE) Insulation |
| Self-Heating | 50 mW / ºC Typical in Moving Water |
| Insulation Resistance | Single Element Probes: 100 mega Ω/min. at 500 Vdc, Leads to Case |
| Transition | Sheath to Wire Transition Maximum Temperature 266 ºF (130 ºC) |
| Warranty | 3 yr |
| Stock | Yes |
| Brand | NOSHOK |
| Manufacturer Part # | NOSHOK 900 Series |
| Size | 1/2" |
| Country of Origin | Made in the United States |
Materials & Construction
| Stem Diameters | 1/8 in |
|---|
Performance
| Temperature Ranges [Min] | -330 ºF |
|---|---|
| Temperature Ranges [Max] | 1,100 ºF |
| Pressure Ratings for Tube | 500 psi |
| Resistance Temperature Device (RTD) Element | PT100 Ω at 32 ºF (0 ºC), α=0.00385 International Electrotechnical Commission (IEC 751) |
Connections
| Connection Type | Male National Pipe Thread (MNPT) with sliding compression fitting - Add 2" to stem length for this option. If installing with thermowells, Process Connection option 48 or 61 must be selected |
|---|---|
| Connection Size | 1/2 in |
| Electrical Connection | M12 x 1 (5-Pin) - Single Circuit Types Only |
Standards & Certifications
32 micro-inches maximum
Overview

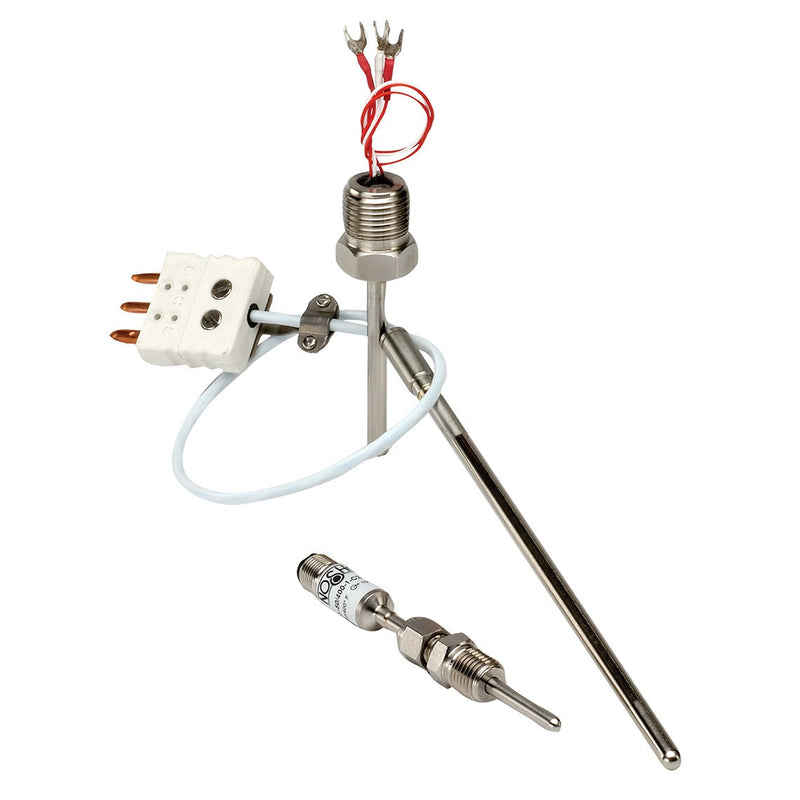

900 Series - Industrial Resistance Temperature Device (RTD) Probes
- General purpose RTD probe with PVC or PTFE lead wires
- Adjustable and welded fittings are available
- Ideal for OEM applications
- PVC or PTFE jacketed lead wires are available
