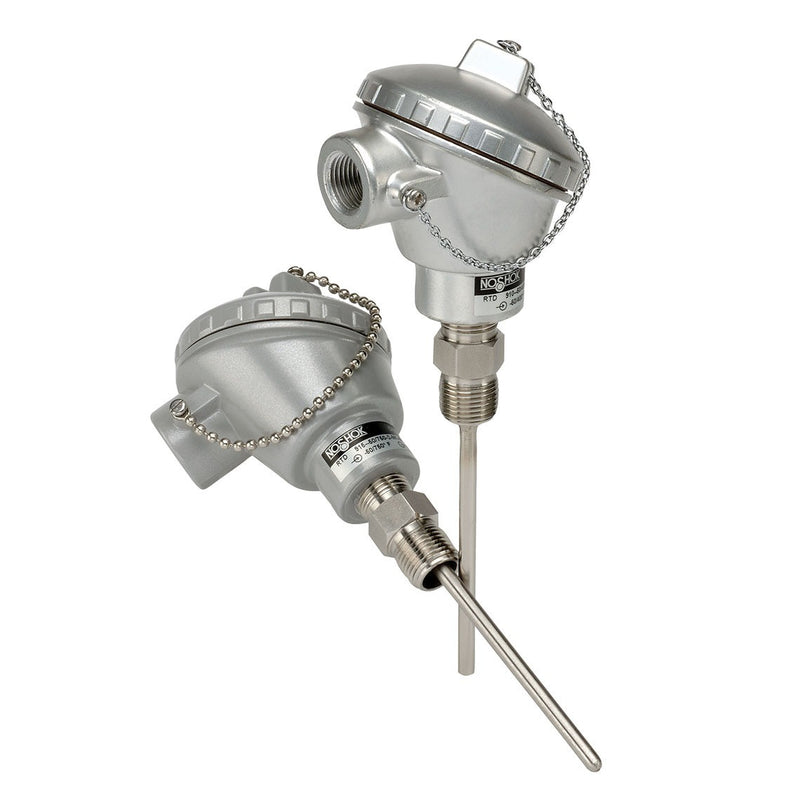

NOSHOK 910/915 Series Industrial Resistance Temperature Device (RTD) Probes With Connection Head, 1/2" NPT Conduit, 2.5" Stem, 1/4" Stem Diameter
SKU:
NSK-910/915-RTD-2.5-in-Stem
Made in the United States
$865.99
Price on request
Out of Stock
Connection Size1/2 in
Pressure Ratings for Tube500 psi
Connection TypeMale National Pipe Thread (MNPT)
Temperature Ranges [Min]-50 ºF
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Probe with Connection Head |
|---|---|
| Series | 910 |
| Lead Wires | Stranded 22 AWG standard, Polyvinyl Chloride (PVC) or Polytetrafluoroethylene (PTFE) Insulation |
| Accuracy | ±0.12% (±0.3 ºC) at 0 ºC, Class B |
| Element Types | PT100 Ω at 0 ºC |
| Circuit Types | Single, 3-Wire |
| Self-Heating | 50 mW / ºC Typical in Moving Water |
| Insulation Resistance | Single Element Probes: 100 mega Ω/m" at 500 Vdc, Leads to Case |
| Transition | Sheath to Wire Transition Maximum Temperature 266 ºF (130 ºC) |
| Optional Transmitter/Output | 4 to 20 mA, 2-Wire, Downscale Burnout |
| Environmental Protection | A1/A2:National Electrical Manufacturers Association (NEMA) 4 |
| Warranty | 3 yr |
| Stock | Yes |
| Brand | NOSHOK |
| Manufacturer Part # | NSK-910/915-RTD-2.5-in-Stem |
| Size | 1/2" |
| Country of Origin | Made in the United States |
Materials & Construction
| Wetted Materials | 316 Stainless Steel |
|---|---|
| Stem Diameters | 1/4 in |
| Stem Lengths | 2-1/2 in |
Performance
| Temperature Ranges [Min] | -50 ºF |
|---|---|
| Temperature Ranges [Max] | 400 ºF |
| Pressure Ratings for Tube | 500 psi |
| Resistance Temperature Device (RTD) Element | PT100 Ω at 32 ºF (0 ºC), α=0.00385 International Electrotechnical Commission (IEC 751) |
Connections
| Connection Type | Male National Pipe Thread (MNPT) |
|---|---|
| Connection Size | 1/2 in |
| Electrical Connection | Connection Head with 1/2 " National Pipe Thread (NPT) Conduit |
| Electrical Connection Materials | Stainless Steel Cast, Explosion Proof (Factory Mutual and Canadian Standards Approved Explosion Proof Class I, Division I, Groups B, C and D; Class II, Division I, Groups E, F and G) |
Standards & Certifications
32 micro-inches maximum
Overview
910/915 Series - Industrial Resistance Temperature Device (RTD) Probes With Connection Head
- Standard head-type RTD assembly
- A variety of head types are available
- Factory Mutual and Canadian Standards approved explosion proof models available
- Transmitter available, fits standard heads
