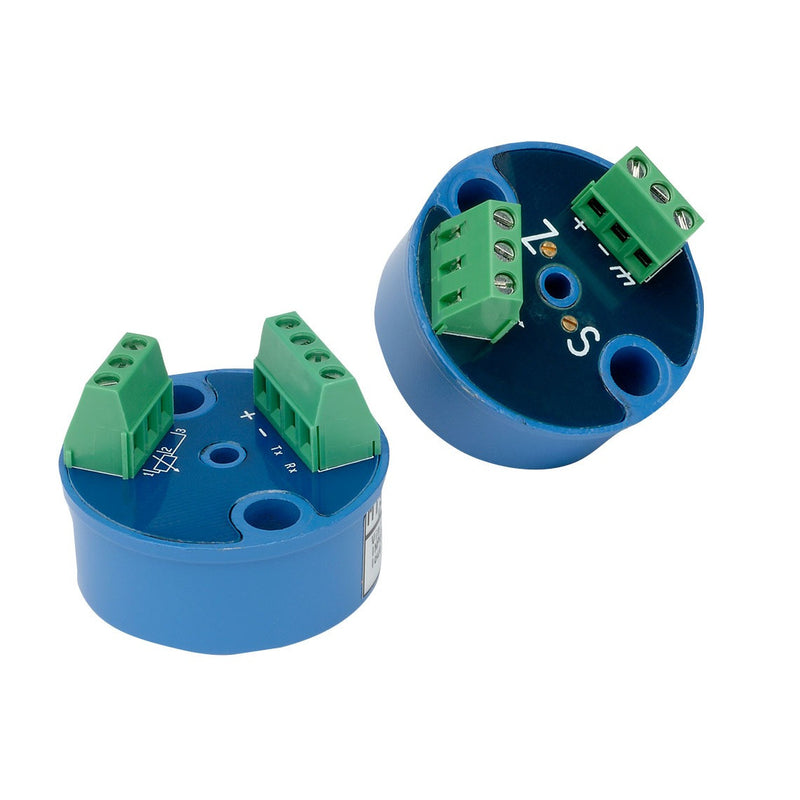

NOSHOK 920 Series Resistance Temperature Device (RTD) Transmitters, 920-NRT-1-0/250-0, 4 to 20 mA Upscale Burnout
SKU:
920-NRT-1-0/250-0
Made in the United States
$174.99
Price on request
Was: $181.40
You Save $6.41
Available
Available Sizes
0 to 200 deg F
0 to 250 deg F
Size0 to 250 deg F
Low Calibrated Temperature Range0 ºF
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Head-Mounted Transmitter |
|---|---|
| Series | 920 |
| Power Supply | 12 to 32 Vdc, Polarity Protected |
| Accuracy1 | 0.1% Full Scale (FS) (Includes Effects of Linearity, Hysteresis and Repeatability) |
| Output | 4 to 20 mA, 2-Wire |
| High Accuracy (±) | 0.1 % |
| Supply Effect | 0.02%/V, 0.001%/V with Computer Programmable Version |
| Zero Drift | ±0.01% FS/ ºC |
| Span Drift | ±0.01% FS/ ºC |
| Long Term Drift | ≤0.5% FS/year |
| Span/Zero Adjustment | 20 Turn Potentiometer, ±10% for Zero and Span |
| Maximum Loop Resistance | Rmax. = [ ( Vsupply - 9 Vdc ) / 20 mA |
| Open Circuit Detection Overscale Limit | 27.0 mA |
| Open Circuit Detection Underscale Limit | 2.2 mA |
| Warm Up | 30 s |
| Options | None |
| Warranty | 3 yr |
| Housing Diameter | 1.82 in |
| Stock | Yes |
| Brand | NOSHOK |
| Manufacturer Part # | 920-NRT-1-0/250-0 |
| Size | 0 to 250 deg F |
| Country of Origin | Made in the United States |
Materials & Construction
| Housing Material | Die-Cast Zinc, Enamel Painted |
|---|
Performance
| Low Calibrated Temperature Range | 0 ºF |
|---|---|
| High Calibrated Temperature Range | 250 ºF |
| Storage Temperature [Max] | 80 ºC |
| Storage Temperature [Min] | -40 ºC |
| Ambient Temperature Range | -40 to 176 ºF |
| Excitation Current Resistance Temperature Device (RTD) | 0.8 mA |
| Sensor Lead Resistance Temperature Device (RTD) [Max] | 500 O |
Dimensions & Weight
| Height | 1.15 in |
|---|
Overview
920 Series - Resistance Temperature Device (RTD) Transmitters
- 2-wire loop-powered 4 mA to 20 mA output
- Linearized output to temperature
- Input RTD PT100 with 3-wire compensation
- Analog design, potentiometer adjustable
