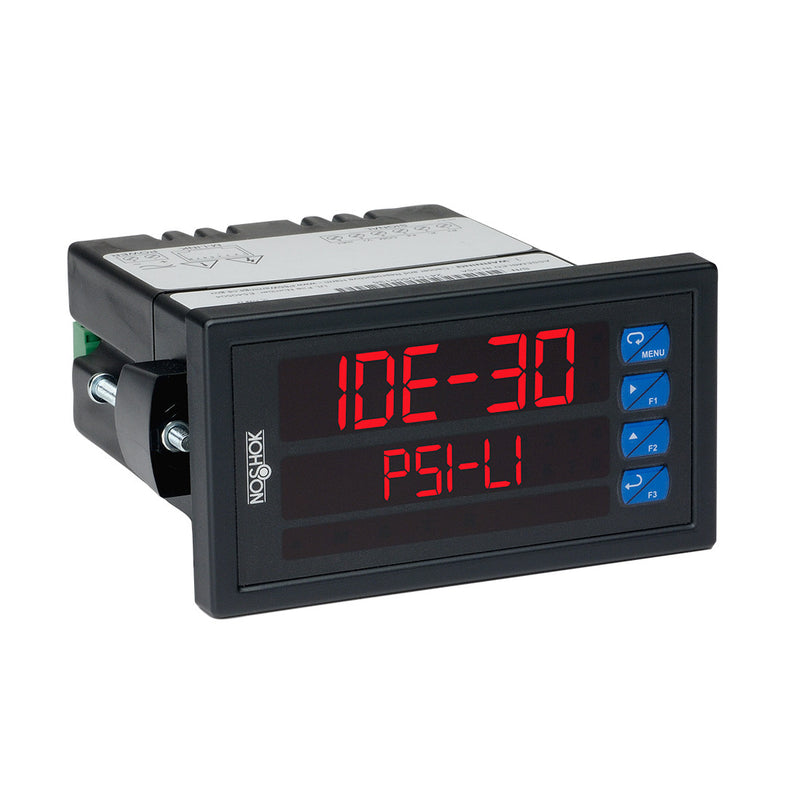

NOSHOK IDE30 Series Intelligent Line Powered Panel Meter, Dual Line, 6 Digits, Red LED, 4 Relays & 4-20 mA Output
SKU:
NOSHOK-IDE30-SERIES-5
Made in the United States
Starting at
$103.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Electrical connectionScrew terminals at back of case
Temperature rangesOperating: -40 °F to 150 °F(-40 °C to 65 °C)
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Input signals | A: Field selectable: 0-20 mA, 4-20 mA; +10 V (0-5 V, 1-5 V, 0-10 V) |
|---|---|
| Sensor Excitation | A: Isolated 24 Vdc @ 200 mA Transmitter Power Supply |
| Process Display | Dual-Line 6-Digit Display, 0.6" (15 mm) & 0.46" (12 mm) |
| Key pad | 4 Front panel buttons |
| Power requirement | AC version: 85-265 Vac 50/60 Hz, 20 watts max |
| Accuracy | See User Manual |
| Humidity | 0 to 90% non-condensing |
| Normal rejection mode | Greater than 60 dB at 50/60 Hz |
| Altitude | Up to 2,000 meters |
| Update rate | 5/second (200 ms) |
| Filtering | 0 seconds to 25 second, selectable |
| Min/Max reading | Captures and stores min/max measurement |
| Linearization | 2 to 32 points, selectable |
| Option cards | 4 Relays & 4-20 mA Output |
| Brand | NOSHOK |
| Manufacturer Part # | NOSHOK-IDE30-SERIES-5 |
| Country of Origin | Made in the United States |
Performance
| Temperature ranges | Operating: -40 °F to 150 °F(-40 °C to 65 °C) |
|---|---|
| Electromagnetic rating | See user manual for detail |
| Environmental rating | NEMA 4X, IP65 (front of display only) |
Connections
| Electrical connection | Screw terminals at back of case |
|---|
Dimensions & Weight
| Weight | 9.5 oz (269 g) |
|---|
Overview
IDE30 Series - Intelligent Line Powered Panel Meter
- Accepts a variety of standard process signals and precisely scales them into any desired unit of measurement
- Single input
- Employs advanced technology for stable, drift-free readout
- Upgradable with option cards; including relay set point alarms, analog output and serial communication
- 32 point scaling for non-linear processes
- Max. and min. value display
- Easy menu-driven programming
- NEMA 4X/IP65 sealed front bezel
- Integral PC software available for configuration
- AC or DC input power
- Programmable signal response time
- Standard DIN panel cutout
