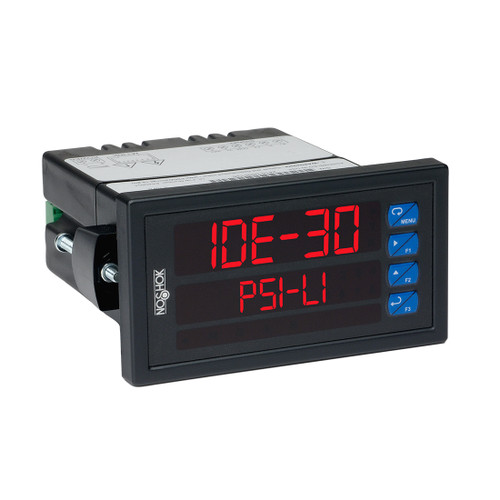

NOSHOK IDE30 Series Intelligent Line Powered Panel Meter, IDE30-T-2-2-4, Temperature, 12-24 VDC/VAC, SunBright, 0.6 in, Dual Line, 6 Digits, Red LED, 2 Relays & 4-20 mA output
Brand : NOSHOK
Starting At:
$957.99
- SKU:
- IDE30-T-2-2-4
- Size Dropdown:
- True
IDE30 Series - Intelligent Line Powered Panel Meter
- Accepts a variety of standard process signals and precisely scales them into any desired unit of measurement
- Single input
- Employs advanced technology for stable, drift-free readout
- Upgradable with option cards; including relay set point alarms, analog output and serial communication
- 32 point scaling for non-linear processes
- Max. and min. value display
- Easy menu-driven programming
- NEMA 4X/IP65 sealed front bezel
- Integral PC software available for configuration
- AC or DC input power
- Programmable signal response time
- Standard DIN panel cutout
Technical Specifications
Input signals
A: Field selectable: 0-20 mA, 4-20 mA; +10 V (0-5 V, 1-5 V, 0-10 V)
T: J, K, T, E, R, S, B, N, C Thermocouples 100 or 1000 Ω Platinum, 10 Ω Copper, 120 Ω Nickel RTDs
R: 15 mV, 30 mV, 150 mV, 300 mV unipolar; ±15 mV, ±25 mV, ±150 mV, ±250 mV bipolar Inputs
Sensor Excitation
A: Isolated 24 Vdc @ 200 mA Transmitter Power Supply
R: Selectable 5 or 10 VDC Sensor Excitation @ 350 mA Max
Process Display
Dual-Line 6-Digit Display, 0.6" (15 mm) & 0.46" (12 mm)
Key pad
4 Front panel buttons
Power requirement
AC version: 85-265 Vac 50/60 Hz, 20 watts max
DC version:90-265 Vdc or 12-24 Vdc ±10%, 15 watts max
Electrical connection
Screw terminals at back of case
Accuracy
See User Manual
Humidity
0 to 90% non-condensing
Normal rejection mode
Greater than 60 dB at 50/60 Hz
Altitude
Up to 2,000 meters
Update rate
5/second (200 ms)
Temperature ranges
Operating: -40 °F to 150 °F(-40 °C to 65 °C)
Storage: -40 °F to 185 °F (-40 °C to 85 °C)
Electromagnetic rating
See user manual for detail
Environmental rating
NEMA 4X, IP65 (front of display only)
Filtering
0 seconds to 25 second, selectable
Min/Max reading
Captures and stores min/max measurement
Linearization
2 to 32 points, selectable
Weight
9.5 oz (269 g)
Option cards
2 Relays & 4-20 mA output
Applications
- Process indication
- On/off pump controls
- Compressor controls
- Safety or shutdown alarms
- Local indication with signal
- Retransmission to computer control system
