NOSHOK PGE20 Series - General Purpose Digital Gauge, ±0.50% Full Scale, Including Non-Linearity, Hysteresis, Zero Offset, End Point Deviationper IEC 61298-2 at Reference Conditions, 1/4 NPT Male

Name: NOSHOK PGE20 Series - General Purpose Digital Gauge, ±0.50% Full Scale, Including Non-Linearity, Hysteresis, Zero Offset, End Point Deviationper IEC 61298-2 at Reference Conditions, 1/4 NPT Male
Brand: NOSHOK
SKU: NSK-PGE20-SERIES-0/10000-psi

SKU: NSK-PGE20-SERIES-0/10000-psi

Made in the United States

Starting at $297.99

Select a Model to Order This page shows the full series. Choose a specific model below to view pricing and add to cart.

Available Models

0-1500 psi 0-2000 psi 0-5000 psi 0-6000 psi 0-7500 psi 0-750 psi 0-10000 psi 0-1000 psi 0-3000 psi

Select a model above to add to cart.

Pressure Range0 psig to 750 psig

Process Connection1/4" NPT Male

Operating Temperature [Min]-10°C; 14°F

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Accuracy	±0.5% Full Scale
Measuring Element	316L Stainless Steel
Case	PBT with 30% glass fiber
Display	Back-lighting: activated via button
Power requirement	3 x 1.5 V AA Alkaline batteries
Response time	200 ms
Programmable functions, Measuring units	Adjustable through front key pad
Accessories / Uninstalled Options	PGE20-GC1 - Guage Carrying Case (1 gauge)
Brand	NOSHOK
Manufacturer Part #	NSK-PGE20-SERIES-0/10000-psi
Country of Origin	Made in the United States

Performance

Pressure Range	0 psig to 750 psig
Operating Temperature [Min]	-10°C; 14°F
Operating Temperature [Max]	50°C; 122°F
Media Temperature [Min]	-20°C; -4°F
Media Temperature [Max]	50°C; 122°F
Storage Temperature [Min]	-18°C; 0°F
Storage Temperature [Max]	55°C; 130°F
Proof Pressure	> 7.500 psi: 1.43 times full scale
Burst pressure	>7.500 psi: 2 times full scale
Environmental rating	IP65

Connections

Process Connection	1/4" NPT Male

Dimensions & Weight

Weight	0.77 lb

Download Specification Sheet (PDF)

Overview

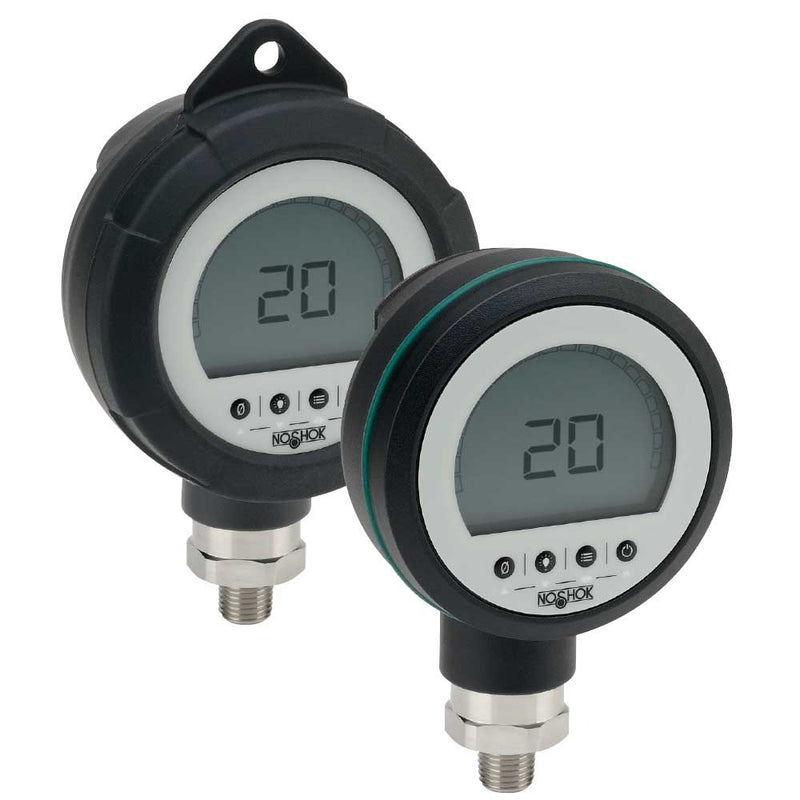

PGE20 Series - General Purpose Digital Gauge

Rugged, electronic gauge
Gauge, compound, absolute and vacuum ranges from 5 psig to 15,000 psig
4 1/2-Digit display with 0% to 100% bar graph
316L Stainless Steel wetted parts
