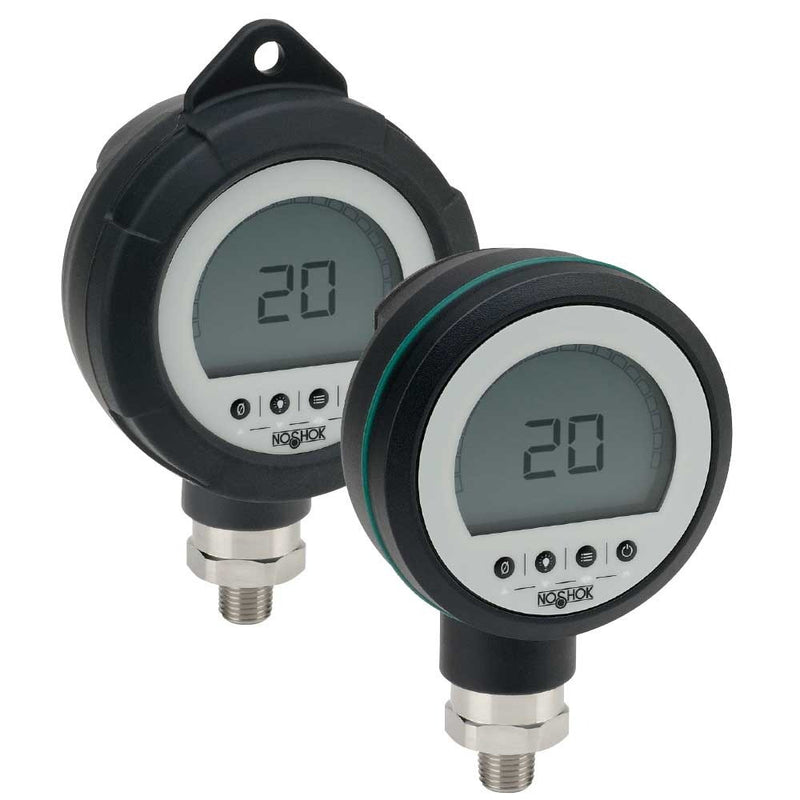

NOSHOK PGE20 Series - General Purpose Digital Gauge, PGE20-300psig-1-2, 0 to 300 psi,±0.50% of full scale, Including non-linearity, Hysteresis, Zero offset, End point deviation per IEC 61298-2 at reference conditions, 1/4 NPT Male
SKU:
PGE20-300psig-1-2
Made in the United States
$598.99
Price on request
Was: $664.96
You Save $65.97
Available to Order
Size1/4"
Pressure Range0 psig to 300 psig
Process Connection1/4" NPT Male
Operating Temperature [Min]-10 ºC; 14 ºF
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Accuracy | ±0.5% Full Scale |
|---|---|
| Measuring Element | 316L Stainless Steel |
| Case | PBT with 30% glass fiber |
| Display | Back-lighting: activated via button |
| Power requirement | 3 x 1.5 V AA Alkaline batteries |
| Response time | 200 ms |
| Programmable functions, Measuring units | Adjustable through front key pad |
| Accessories / Uninstalled Options | PGE20-GC1 - Guage Carrying Case (1 gauge) |
| Brand | NOSHOK |
| Manufacturer Part # | PGE20-300psig-1-2 |
| Size | 1/4" |
| Country of Origin | Made in the United States |
Performance
| Pressure Range | 0 psig to 300 psig |
|---|---|
| Operating Temperature [Min] | -10 ºC; 14 ºF |
| Operating Temperature [Max] | 50 ºC; 122 ºF |
| Media Temperature [Min] | -20 ºC; -4 ºF |
| Media Temperature [Max] | 50 ºC; 122 ºF |
| Storage Temperature [Min] | -18 ºC; 0 ºF |
| Storage Temperature [Max] | 55 ºC; 130 ºF |
| Proof Pressure | > 7.500 psi: 1.43 times full scale |
| Burst pressure | >7.500 psi: 2 times full scale |
| Environmental rating | IP65 |
Connections
| Process Connection | 1/4" NPT Male |
|---|
Dimensions & Weight
| Weight | 0.77 lb |
|---|
Overview
PGE20 Series - General Purpose Digital Gauge
- Rugged, electronic gauge
- Gauge, compound, absolute and vacuum ranges from 5 psig to 15,000 psig
- 4 1/2-Digit display with 0% to 100% bar graph
- 316L Stainless Steel wetted parts
