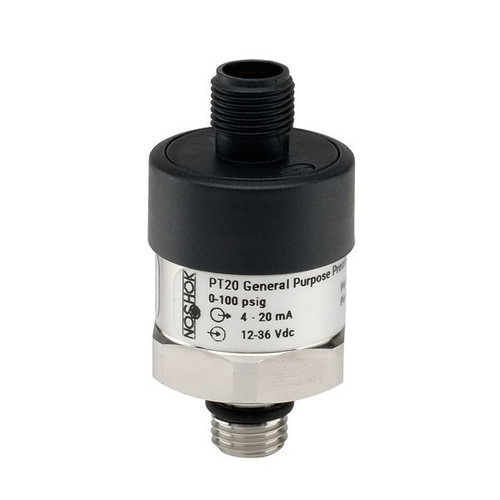

NOSHOK PT20 Series General Purpose Fixed Range Pressure Transmitter PT20-100PSIG-1-5-45-25, 0 to 100psig, 7/16-20 Male SAE J514 FIG 34B (Non-Adjustable), M12 x 1 4 pin
Brand : NOSHOK
Starting At:
$181.99
- Size Dropdown:
- True
PT20 Series - General Purpose Fixed Range Pressure Transmitters
- Gauge, compound, absolute and vacuum ranges from 1 psig to 10,000 psig
- Current and voltage outputs available
- 316 and 13-8PH Stainless Steel wetted parts
- RoHS compliant
- CE compliant to suppress RFI, EMI and ESD
Specifications
Product Series
PT20 General Purpose Fixed Range Pressure Transmitter
Pressure Range
0 to 100 psi gauge
Accuracy
±0.5% of span, non-linearity best fit straight line per IEC 61298-2 at reference conditions
Output Signal
0 Vdc to 10 Vdc, 3-wire
Process Connection
7/16-20 Male SAE J514 FIG 34B (Non-Adjustable)
Electrical Connection
M12 x 1 4 pin
Power Requirement
8 Vdc to 30 Vdc
Environmental Rating
IP65
Materials of Construction (Wetted Parts)
316 Stainless Steel with 316 Stainless Steel housing
Media Temperature Range
32 to 176 ºF / 0 to 80 ºC
Application
- HVAC
- Hydraulics & pneumatics
- Injection molding machines
- General Industrial
- Stamping & forming presses
